Independent movement for each pallet with A.C. motor and vector drives (wear-prone transmission elements eliminated – minimum maintenance and high reliability) All pallets are in pulling mode and the rubber blocks on them are shaped to provide the widest contact surface with the pipe. Upper pulling pallets can be adjusted at an angle. Even with minimum pressure on the pallets, maximum pulling force is achieved with minimum pallet pressure due to the high contact available on the pallets.
$null
Designed to control your production quality, this machine checks the strength of the welded heads of irrigation pipes.
$null
Our winders, suitable for all types of pipe production, allow for safe and high-quality winding with their ability to operate in series and be adjusted to the desired torque value. In HAYTEK winders, torque and speed settings, as well as values such as the diameter of the wound pipe, can be easily controlled with the PLC touch screen control unit.
$null

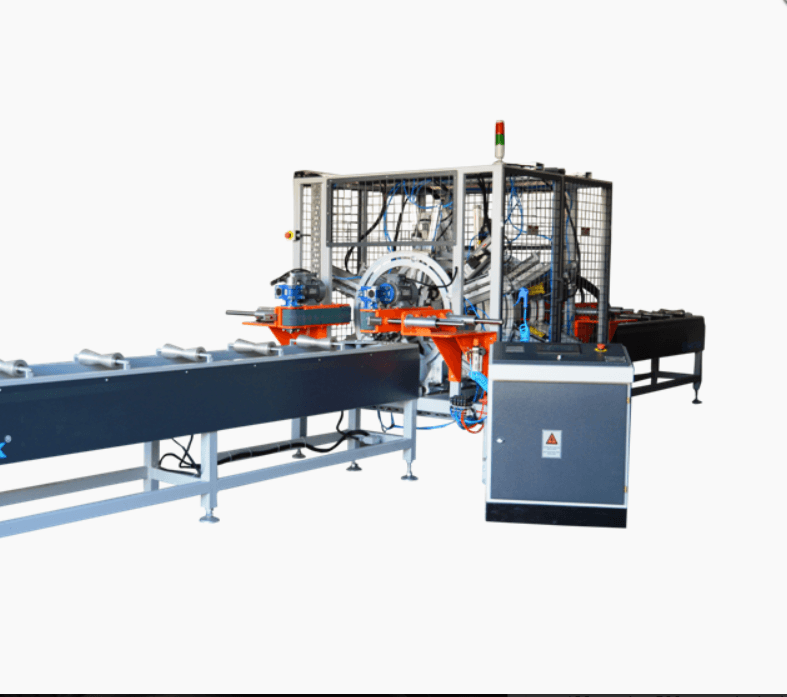

Transverse slotting machines for plain and corrugated PVC, PE, etc. pipes (for filtering water from wells and drainage or consolidating the soil) It is possible to open 1 or more parallel slots; variable dimensions can be made if needed. A wide variety of diamond blade or special steel blade types can be used. This machine, which we developed for making holes and slots in drainage pipes, can make both holes and slots at desired angles and intervals. Our machine is designed for corrugated and plain pipes. Our machine, which can open slots and holes for pipe diameters from 200mm to 500mm, can adjust hole or slot intervals with 1mm precision thanks to its encoder.
$null
Automatic threading machines that can work in-line or off-line, suitable for PVC electrical, gas, and water pipes (can be used for single and double extrusion) External and internal threading (with chamfering) occurs on both sides simultaneously. Independent spindle motors are used for both threading units. Thread lengths are adjustable. Thread depths are adjustable. Clamping of pipes during the threading process is provided by the iris mechanism jaw system. High efficiency and thread precision. Settings can be made from the touch screen for all pipe diameters. Easy operation, effective working, minimum maintenance. Optional servo system. Pipe preparation and storage stands. Clean working area thanks to dust-sealed structure
$null
Material: Made of cast aluminum, providing high thermal conductivity and durability. Structure: Features a cylindrical body composed of two halves. This "split" (separable) design allows for easy removal of the molded part or clamping around a sleeve. Fasteners: Screw holes and a flanged structure are visible on the sides, used to secure the parts together. Lid and Outlets: The lid on the top has outlet nozzles, likely used for electrical connections or sensor inputs (thermocouple, etc.), and a ring (eyebolt) for easy carrying.
$null
Material: Made of cast aluminum, providing high thermal conductivity. Structure: Split-type clamp design consisting of two halves. This structure allows for easy mounting around a cylindrical surface. Lid System: The upper part has a lid with outlets, likely used for pressure equalization or connection points. Inner Surface: The black and rough inner surface suggests the presence of a heating element, insulation material, or raw material to be molded inside.
$null
Dosing Hoppers: Two large hoppers (bunkers) located at the top are units where material is stored and transferred downwards. Precision Weighing System: The platforms located directly below the hoppers are generally equipped with load cells; this ensures that the product is filled into bags at the determined weight. Pneumatic Control: Pneumatic pistons connected by blue hoses control the flap mechanisms that start and stop the material flow. Filling Spouts: The weighed product is transferred directly into the bags to be packaged (like the red and white bag seen on the right in the visual) through inclined metal pipes. Control Panel: Manual control of the machine is provided by the start/stop buttons (green and red) located on the white stand on the left.
$null
The mini bag opening machine is preferred by companies with limited production space. Its ergonomic and economical design makes it easily portable, which is one of its biggest advantages. Bags are completely cut from the sides by two cutting arms, allowing the bags to be emptied. The bag pusher system facilitates the transfer of empty bags. The optional dust filter system prevents the spread of harmful chemicals into the production area, ensuring occupational health and safety. Thanks to its dust-proof structure, employees can load sacks onto the conveyor belt without manual contact and open bags containing harmful chemicals. The mini bag opening machine, with its optional 304 grade chrome body, is suitable for use in the food industry due to its compliance with food regulations, and can provide significant profits to your company based on your production volume. Our machine, with an hourly capacity of 9 tons, can be operated with the help of just one operator by adding an automatic loading system.
