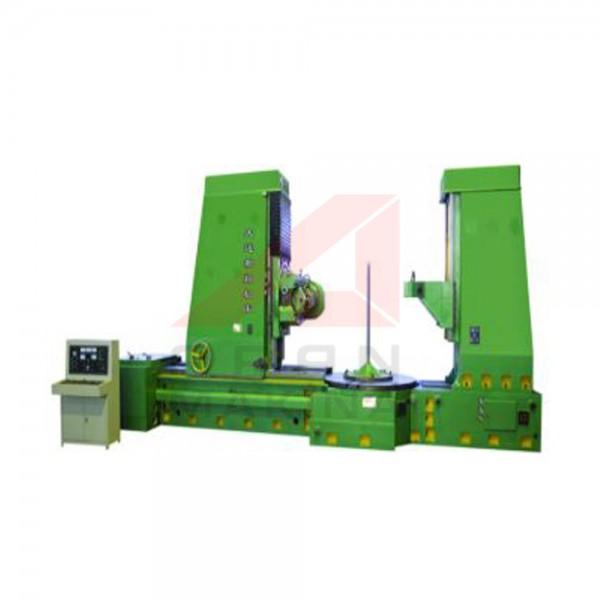

Key Features: · Robust and thermally stable machine bed. · Universal hobbing head providing optimal cutting performance for a wide range of gear types and materials. · Direct-driven table for high-precision cutting results. · Optional capability to increase workpiece diameter up to 500 mm. · Removable arbor and centered tailstock. · Gleason dialog program based on Windows® and Siemens 840D sl control, with error diagnosis software providing detailed message content. Product Description This machine is designed for the precise hobbing of cylindrical gears, worm gears, and similar gear components in the automotive, aerospace, and general machinery manufacturing sectors. It is known for its high rigidity and precision machining capabilities. It has a wide range of applications in both mass production and small-batch production. Basic Technical Specifications: Maximum Workpiece Diameter: 400 mm Maximum Module: 6 mm - 8 mm (varies depending on model year and version) Axis Movements: Provides high-precision feed in X (radial), Y (tangential/swivel), and Z (axial/longitudinal) directions. Control System: Modernized versions typically feature CNC control systems such as Siemens 840D. Weight The weight of such industrial machines varies depending on the accessories, whether it has been modernized (CNC conversion, etc.), and the cast iron body structure: Standard Weight: Approximately 6,200 kg (6.2 tons). Variations: Some technical documents state variations between 4,600 kg and 7,000 kg depending on the configuration. Feature,Typical Value Range Maximum Workpiece Diameter,200 mm - 450 mm (Varies by model) Maximum Module,4 - 8 mm Number of Axes,6 - 8 Axes (CNC Controlled) Maximum Gear Width,250 mm - 400 mm Hob Speed,1,000 - 5,000 RPM Worktable Speed,100 - 800 RPM Positioning Accuracy,±0.002 mm Total Weight,8,000 kg - 12,000 kg
$null

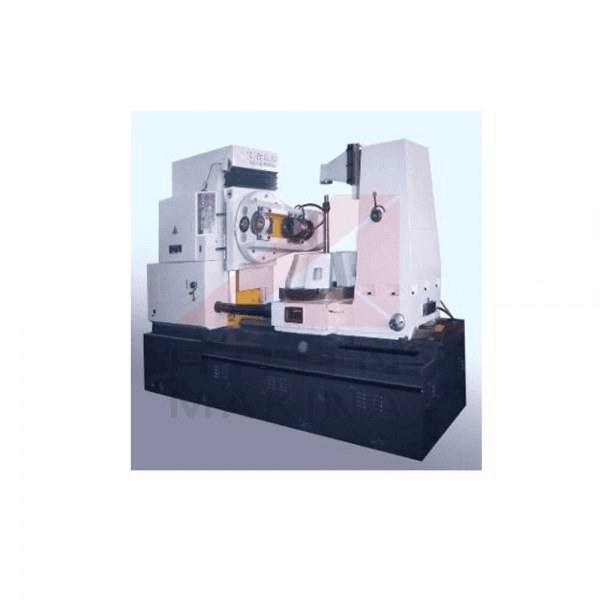

Technical Specifications and Capacity This machine, as indicated by the "100" designation, is generally designed for hobbing gears with a maximum diameter of 100 mm to 125 mm (may vary by model). Maximum Machining Diameter: 100 - 125 mm (Varies by module value). Maximum Module: Typically has a capacity of 3 - 4 module. Axis Control: Although most GH-100 models are currently produced as CNC (2-6 axis), classic hydraulic/mechanical versions like the one shown are also available. Spindle Speed: Offers high speed ranges suitable for working with High-Speed Steel (HSS) or carbide cutters. Machine Weight and Dimensions A hobbing machine in this class has a heavy cast iron body to maintain stability during operation: Weight: Approximately 2,800 kg - 3,500 kg. Footprint: Occupies approximately 2000 x 1500 mm. Product Model: GH-100 Brand: Azdırma Capacity Size 1000 mm Description H-100 Hobbing Machines Production in CE Certified, ISO9001 Factory standards. Feature, Technical Detail / Capacity Maximum Gear Diameter, 500 mm - 800 mm (Model dependent) Maximum Module, 8 - 12 mm Maximum Face Width, 300 mm - 450 mm Table Diameter, 550 mm Table Bore Diameter, 80 mm - 100 mm Hob Cutter Max. Diameter, 160 mm Hob Cutter Max. Length, 180 mm Work Head Swivel Angle, ± 45° (For helical gears) Spindle Speed Range, 40 - 250 rpm Total Motor Power, 7.5 kW - 11 kW Machine Weight (Approximate), 4,500 kg - 6,000 kg Machine Dimensions (WxLxH), 2600 x 1500 x 2200 mm
$null
Gear hobbing machine
