Technical Specifications Motor Power 5.5 kW/7.5 hp Motor Speed 3000 Capacity 8000 m³/hour Suction Pipe Diameter 1×225 mm Machine Dimensions 900×2750 mm Machine Height 2700 mm Filter Size 1200 mm Number of Filters 40 Dust Collection Unit 3 Weight 400 kg Vibration Motor 1
$null

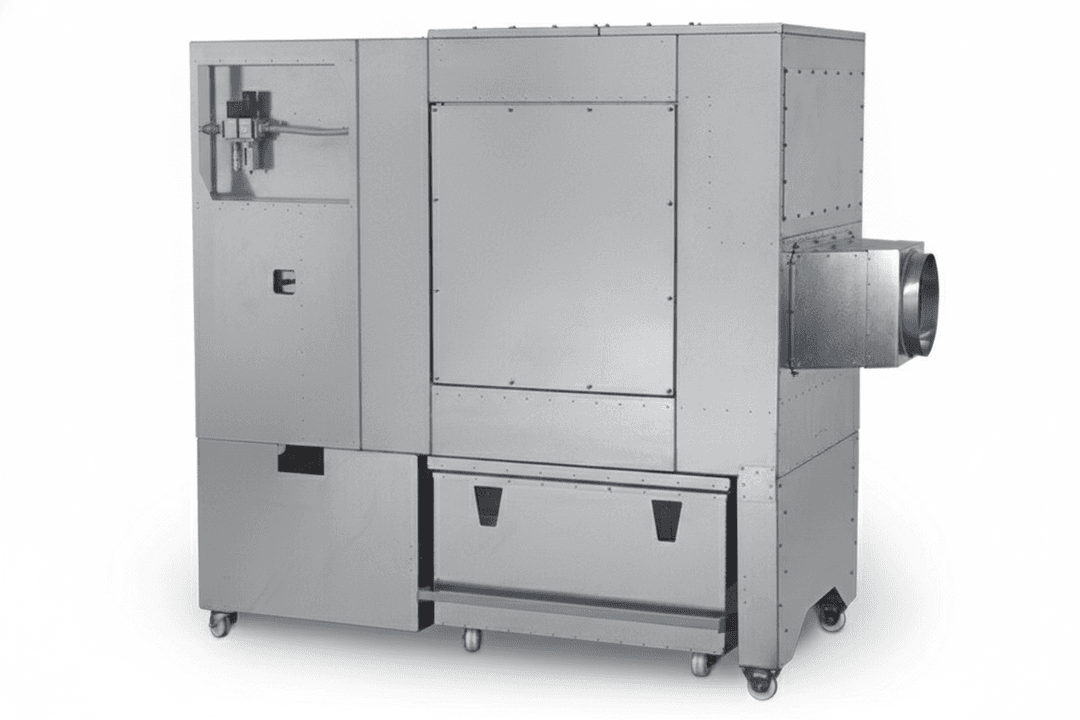

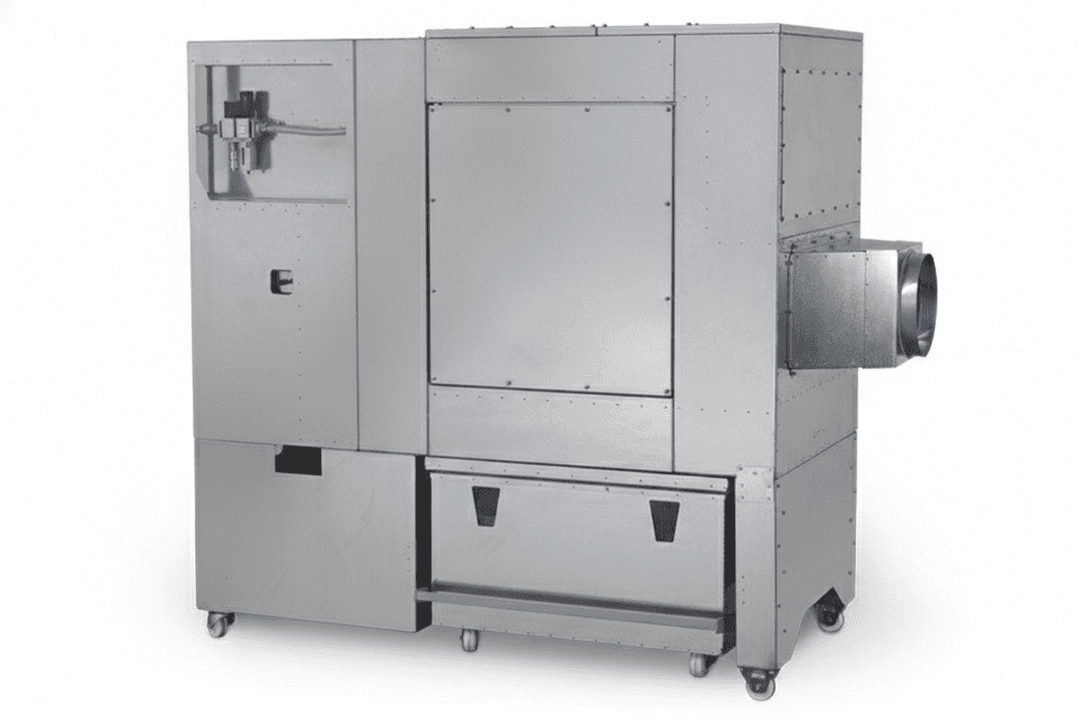

Product Description This professional solution is designed to ensure a clean working environment in production facilities and workshops. Its durable metal body and compact design make it suitable for heavy-duty conditions. Mobile Design: Thanks to the swivel wheels at the bottom, it can be easily moved around the workspace and quickly transported to the required location. Large Waste Bin: The large drawer-type bin located at the bottom allows for easy emptying of collected materials. Modular Structure: The robust outer casing, made of riveted steel plates, provides protection to internal components while offering long-lasting use. Safety and Control: The access door and control points on the side panel make maintenance processes user-friendly.
$null

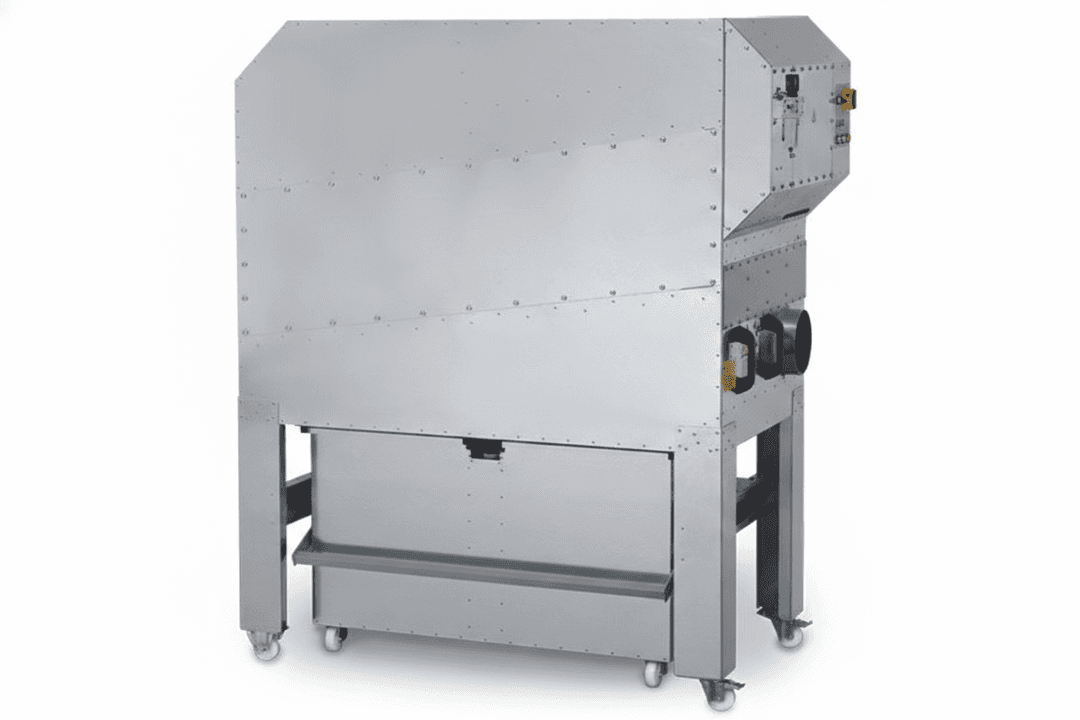

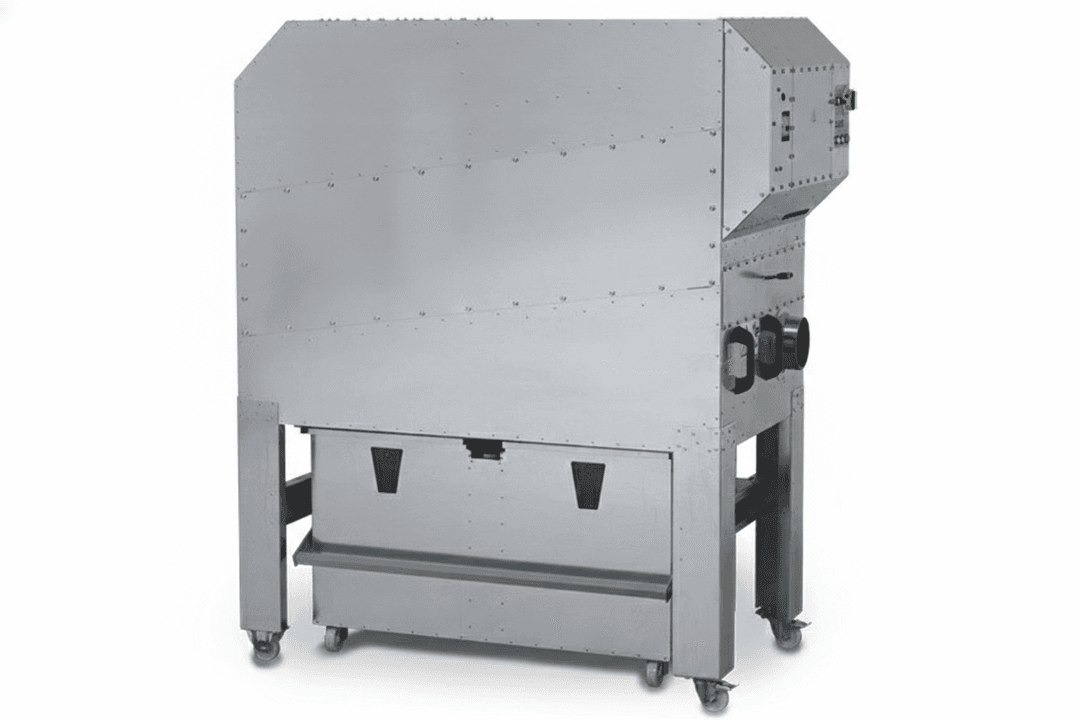

Product DescriptionThis unit is a professional filtration system designed especially for large-scale woodworking workshops and furniture factories. It has a high vacuum capacity that can be connected to multiple machines simultaneously. It separates fine dust and sawdust generated during processing from the air and releases the cleaned air back into the working environment. This way, it protects employee health and saves energy by preventing warm workshop air from escaping in winter.Key FeaturesHigh Efficiency Filtration: Features large surface area filter bags that capture even very small particles.Compressed Air Cleaning: Has an automatic cleaning system that prevents filter clogging and maintains suction power. Large Waste Capacity: Wheeled collection bins are located under the machine, which can be easily removed and emptied when full.Compact and Mobile Structure: Despite its large size, its wheeled chassis allows for repositioning within the workshop. Fire and Explosion Protection: Features a fire-resistant and anti-static electricity build-up body structure in accordance with industrial standards.Technical Detail Summary: Function: Air purification from dust and sawdust storage. Application Area: Carpentry shops, furniture production lines, CNC cutting centers. Capacity: Industrial grade providing an airflow of approximately 8000 $m^3/h$.
$null
Dust collector
