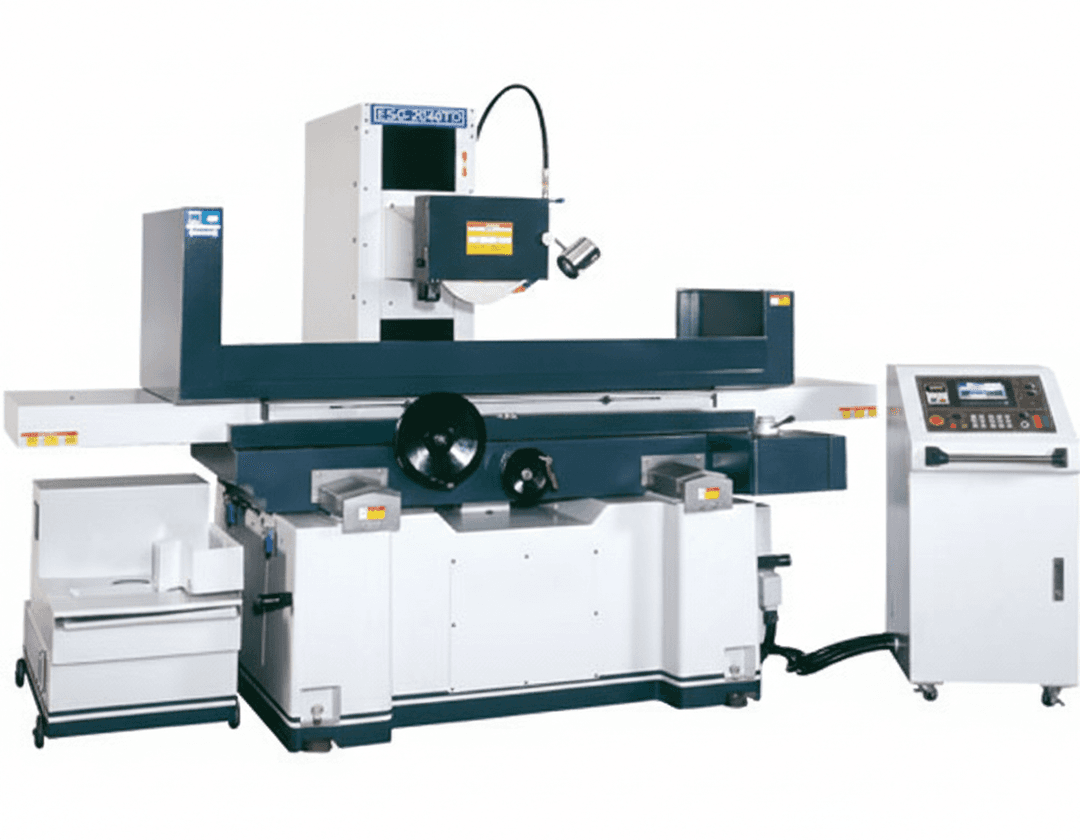

Robust cast iron body, rigid structure Long-lasting, high-precision NSK P4 type bearings used in the grinding spindle V-type guideways ensuring long life and consistent precision Hardened and ground table guideways Guideways laminated with Teflon Central automatic lubrication system Organized and easily accessible electrical panel Adjustable magnetic power Safe control panel operating with 24V voltage Compliant with CE standards Spindle motor: ABB brand Spindle bearing: Japanese NSK brand P4 grade precision ball bearing. Table Y-axis spindle: P5 class precision ball screw Electrical system: SIEMENS Spindle Motor Power 1.5 kW, 400 V Table Dimensions 200x460 mm Table Longitudinal Hydraulic Travel 510 mm Table Cross Manual Travel 225 mm Distance Between Spindle and Table 520 mm Table Load Capacity (max.) 120 kg T-Slot Dimensions 1x14 mm Table Feed Speed Manual Y-Axis Handwheel Feed Line 0.02 mm Y-Axis Handwheel One Revolution 5 mm Grinding Wheel Dimensions, Diameter x Width x Bore Diameter 200x25x32 mm Spindle Speed 2850 rpm Z-Axis Handwheel Feed Line 0.01 mm Z-Axis Handwheel One Revolution 2 mm Cooling Motor Power 90 w Dust Collector Motor Power 550 w Footprint Dimensions 1900x1900 mm Packaging Dimensions 1470x1370x2160 mm Net Weight 1200 kg Gross Weight 1400 kg
$null
Product Description This machine is an advanced manufacturing tool that can cut almost any type of material using very high-pressure water mixed with an abrasive substance (usually garnet sand). Key Features: Versatile Cutting Capacity: Cuts a wide range of materials, from metals like steel and aluminum to delicate materials such as marble, glass, composites, and plastics, without causing heat-related deformation. Cold Cutting Technology: Unlike laser or plasma cutting, it does not generate heat. This prevents burning, melting, or chemical changes in the material. High Precision: Processes complex 2D designs with millimeter accuracy and smooth edges thanks to its CNC (Computer Numerical Control) system. Durable Chassis: Features a heavy metal body designed for industrial use, with vibration damping. Compact Design: Offers an optimized layout for small and medium-sized workshops. Applications: Manufacturing of aerospace and automotive parts. Architectural decoration and marble/tile processing. Prototype development and custom machine part manufacturing. Feature,Detail "Working Area (X, Y)",1500 mm x 3000 mm (or 2000x4000 mm) Laser Type,CO2 Laser / Fiber Laser (Optional) Laser Power,100W - 300W (CO2) / 1kW - 3kW (Fiber) Motion System,Precision Rack and Pinion or Ball Screw Maximum Cutting Speed,20 - 60 m/min (Material Dependent) Positioning Accuracy,±0.05 mm Cooling System,Industrial Water-Cooled Chiller Supported File Formats,"DXF, PLT, AI, SVG, BMP" Control System,CNC Control Panel / PC-Based Software Power Supply,380V / 50Hz (Three-Phase)
$null
Enclosure Design: Body with a wide window and ergonomic sliding door that protects the operator from chips and coolant that may fly during machining. CNC Control Panel: The digital display unit, located on the right side of the machine, allows for programming and machining of complex parts with millimeter precision. Machining Capacity: Behind the red-framed glass compartment, there is a chuck that holds the workpiece and a turret system that carries the cutting tools. Chip Evacuation Unit: The conveyor outlet on the right side automatically removes waste generated during production from the machine, allowing for uninterrupted operation. Areas of Use This machine is used for the mass production of cylindrical metal parts such as shafts, bearing seats, flanges, and bolts. It is designed for high-standard sectors like automotive, aerospace, defense industry, and general machinery manufacturing. Feature,Technical Detail / Value Machine Type,Slant Bed CNC Lathe Control Unit,CNC Operating Panel (with LCD Screen) Maximum Turning Diameter,400 - 550 mm Maximum Machining Length,500 - 1000 mm (Model dependent) Spindle Speed,3500 - 5000 RPM Chuck Size,"8"" - 10"" (Inch)" Turret Type,Servo Turret (10 - 12 Stations) Rapid Traverse (X/Z axis),24 / 30 m/min Positioning Accuracy,± 0.005 mm Motor Power,11 - 15 kW (Continuous Duty) Machine Weight,Approx. 3500 - 5500 kg
$null
Machine Working Principle and Parts This specific model has a modern structure designed for high-precision bending operations: Upper Jaw and Die: The moving part at the top of the machine descends. With its "segmented blades" at the tip, it presses the metal sheet towards the lower die. Lower Die (V-Bed): This is the fixed part where the metal is placed, usually having a "V" shaped channel. Back Gauge System: This system, located inside the machine, adjusts the depth of the metal sheet millimeter by millimeter. This ensures that each bend is of the same measurement. Hydraulic System: The machine in the visual is most likely powered by hydraulic force; this allows it to bend even thick metal sheets like butter by applying tons of pressure. Control Panel and Foot Pedal: The operator adjusts the bending angle and measurements on the screen on the side and uses the red foot pedal to initiate the operation. Key Features Segmented Blades: The segmented nature of the upper die allows for some parts to be removed to prevent the blades from hitting the metal when making box or closed-form bends. Front Support Arms: The two movable arms seen at the front of the machine are designed to prevent heavy and long sheet metal from sagging during bending and to facilitate the operator. Safety Sensors: Optical guards (laser barriers) located on the sides of the bending area instantly stop the machine if a hand or foreign object enters the area during operation. Feature,Standard Value Range Bending Capacity,135 - 175 Ton Bending Length,3100 mm Daylight,450 - 550 mm Piston Stroke,200 - 260 mm Rapid Traverse Speed,100 - 180 mm/sec Bending Speed,10 mm/sec
