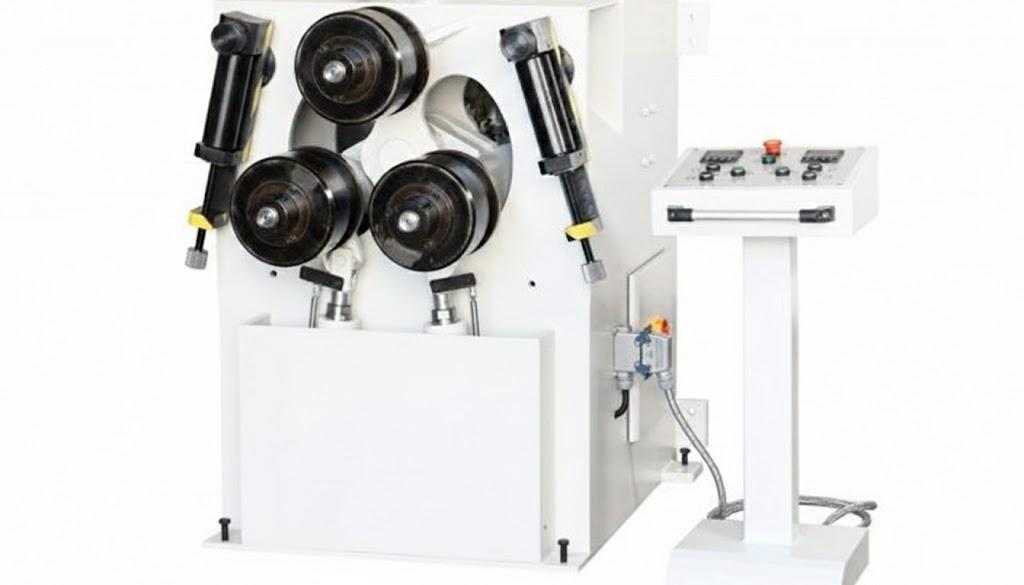

Product Description This machine is an advanced industrial equipment designed for bending metal pipes and profiles at pre-programmed angles and forms, minimizing operator intervention. CNC Control Unit: The independent control panel, located on the right side of the machine, allows for digital programming of complex bending sequences and production with a high repeatability rate. Three-Roll System: The three main bending shafts (rolls) located in the center pass through the material, shaping the metal into the desired curve or circular form. Vertical Working Arrangement: Its compact and vertical design saves space in the workshop and offers an ergonomic workspace for processing medium-sized parts. High Precision: Using hydraulic or servo motor-driven systems, it ensures millimeter precision and smooth surface quality in bending operations. Safety Design: The yellow sections on the main body of the machine typically indicate points where safety sensors or emergency stop mechanisms are located. Application Areas: Production of furniture frames and decorative metal accessories. Automotive spare parts and chassis components. Handrails, stairs, and facade systems in the construction sector. Special profile bends for the aerospace and defense industry. Feature,Description / Standard Values Drive System,3 Roll Driven (Hydraulic or Electric Motor) Control Unit,CNC Graphic Control Panel (Touch Screen + Keyboard) Bending Capacity,Pipe diameter: 60 mm - 120 mm (Varies by model) Shaft Diameters,50 mm - 100 mm Roll Diameters,150 mm - 350 mm Motor Power,5.5 kW - 15 kW Bending Speed,1 - 7 m/min (Steplessly adjustable) Working Position,Horizontal and Vertical working capability Side Guides,3-axis hydraulically operated side guides (For spiral bending)
$null

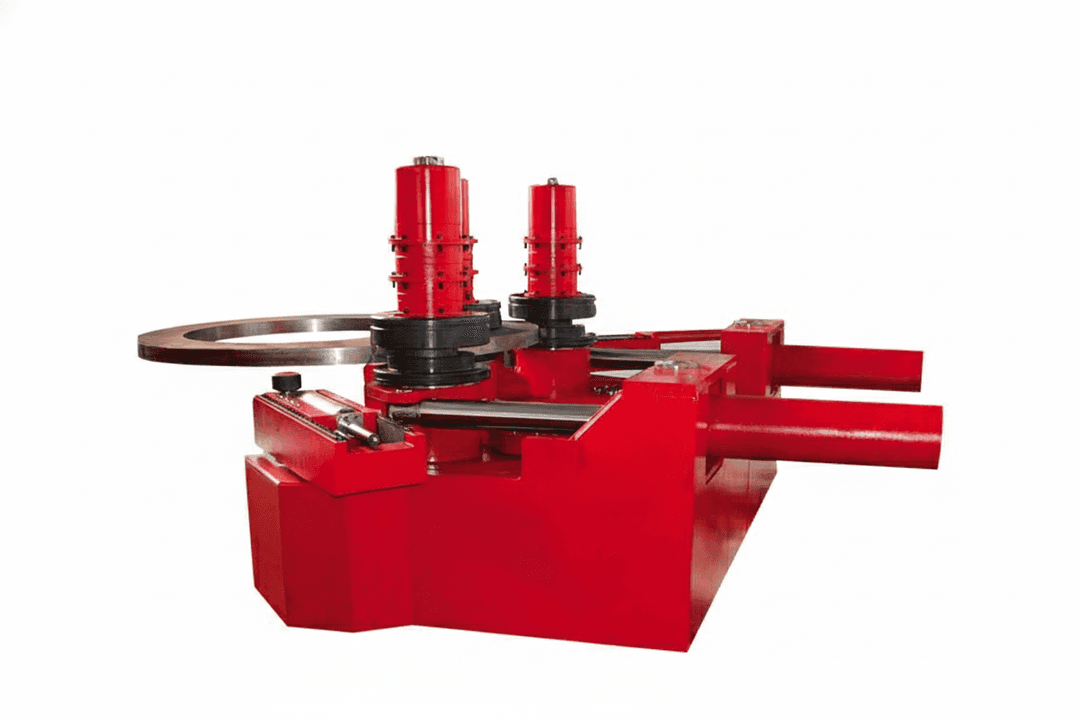

Product Description This machine is a high-power industrial equipment used to give metal profiles and pipes the desired curve, circle, or arc form. Working Principle: Operates with a three-roll (cylinder) system. Cylinders applying hydraulic pressure bend the metal gradually as it passes through. The image shows the machine processing a metal ring (which could be a flange or pulley). Hydraulic Power: Equipped with high-pressure hydraulic pistons and a powerful motor system to bend heavy metal parts without deforming them. Precise Control: Generally works integrated with CNC or NC control systems, ensuring that each part has the same bending angle in mass production. Durable Structure: The body is made of monoblock steel to withstand high tonnage operations. Versatility: By fitting different dies (roll sets), it can process materials in various forms such as pipes, square profiles, flat bars, angles, and T-profiles. Areas of Use: Steel construction and building sector. Shipbuilding and shipyards. Large diameter tank, silo, and flange manufacturing. Automotive and heavy machinery chassis production. These are industrial machines that ensure metal profiles are bent into the desired shapes and sizes. They are generally used in the construction, automotive, aerospace, and shipbuilding sectors. These machines speed up your production processes and reduce your costs by offering the ability to process various materials, precise angle control, and high efficiency. Davi Promau's CNC Controlled Profile Bending Machines can offer different solutions for materials of different sizes and types. Feature,Description / Value (Estimated) Machine Type,Heavy Duty Hydraulic Profile Bending Drive System,Hydraulic (3-Roll Driven) Shaft Diameters,100 mm - 180 mm (Varies by model) Roll (Ball) Diameters,300 mm - 500 mm Bending Speed,2 - 6 m/min (Adjustable) Motor Power,15 kW - 30 kW Maximum Pressure,250 - 300 Bar Working Position,Horizontal and Vertical Working Capability Body Structure,Welded Steel Construction (St 52) Control Panel,Manual or CNC / NC Control
$null
Profile bending machine
