Enclosure Design: Body with a wide window and ergonomic sliding door that protects the operator from chips and coolant that may fly during machining. CNC Control Panel: The digital display unit, located on the right side of the machine, allows for programming and machining of complex parts with millimeter precision. Machining Capacity: Behind the red-framed glass compartment, there is a chuck that holds the workpiece and a turret system that carries the cutting tools. Chip Evacuation Unit: The conveyor outlet on the right side automatically removes waste generated during production from the machine, allowing for uninterrupted operation. Areas of Use This machine is used for the mass production of cylindrical metal parts such as shafts, bearing seats, flanges, and bolts. It is designed for high-standard sectors like automotive, aerospace, defense industry, and general machinery manufacturing. Feature,Technical Detail / Value Machine Type,Slant Bed CNC Lathe Control Unit,CNC Operating Panel (with LCD Screen) Maximum Turning Diameter,400 - 550 mm Maximum Machining Length,500 - 1000 mm (Model dependent) Spindle Speed,3500 - 5000 RPM Chuck Size,"8"" - 10"" (Inch)" Turret Type,Servo Turret (10 - 12 Stations) Rapid Traverse (X/Z axis),24 / 30 m/min Positioning Accuracy,± 0.005 mm Motor Power,11 - 15 kW (Continuous Duty) Machine Weight,Approx. 3500 - 5500 kg

Cnc lathe

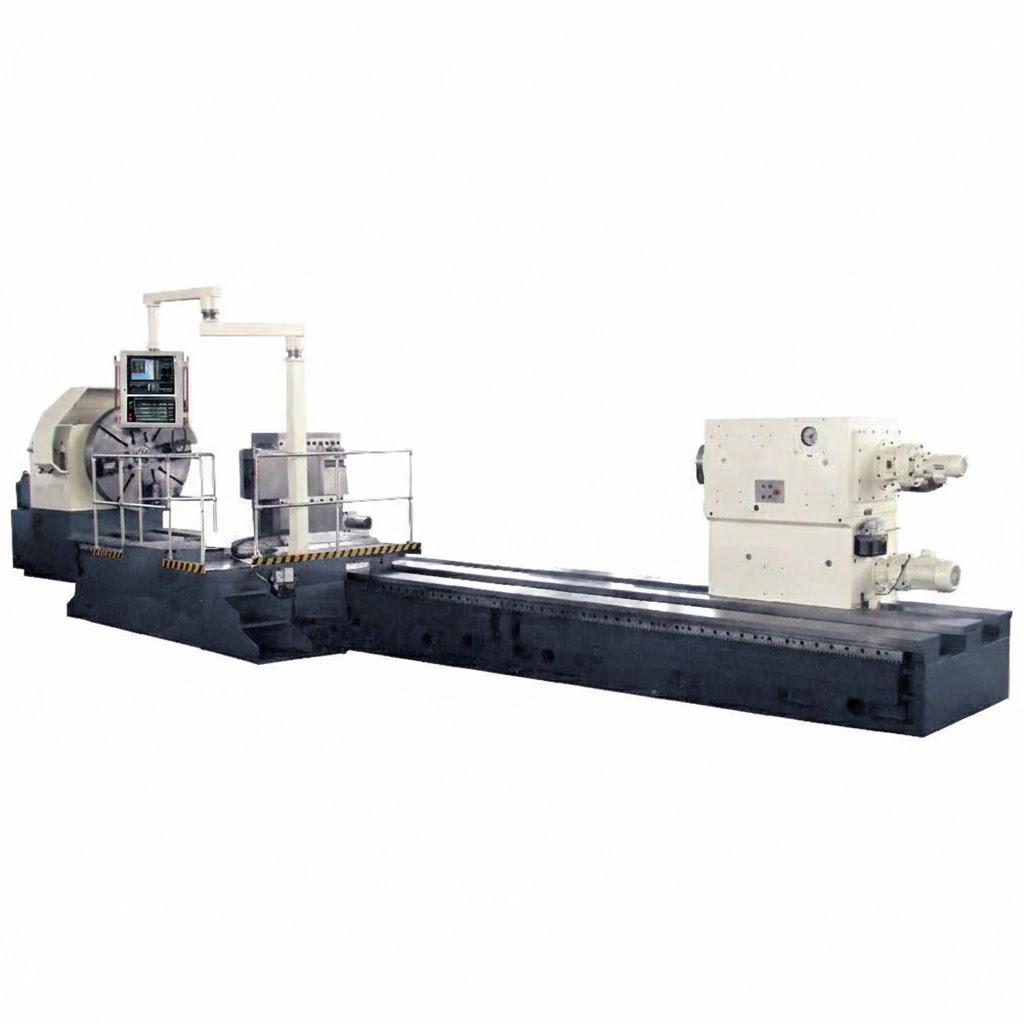

General Description: This machine is designed for sectors requiring the processing of large-scale parts, such as shipbuilding, power plants, wind turbines, and the defense industry. It performs high-precision carving, drilling, and threading operations on giant shafts, cylinders, and discs. Key Features: High Load Capacity: Cast iron body and wide bed structure capable of carrying workpieces weighing tons without deflection. Large Swing Diameter: Wide bed distance, allowing for the turning of much larger diameter parts compared to standard lathes. Precision Control Panel: Processing of complex geometries with millimeter accuracy thanks to the advanced CNC control unit visible on the left side of the image. Modular Design: Extendable tailstock and bed structure for long workpieces. Applications: Production of large hydraulic cylinders. Machining of ship shafts and propeller shafts. Maintenance and manufacturing of turbine rotors. Surface renewal operations for large rolling mill rolls. Feature,Typical Value Range Swing Over Bed,1000 mm - 2500 mm Swing Over Carriage,800 mm - 2000 mm Maximum Machining Length (Between Centers),3000 mm - 12000+ mm Maximum Workpiece Weight,10 Ton - 80 Ton Spindle Speed,1 - 500 RPM (Stepped/Geared) Spindle Motor Power,30 kW - 100+ kW Bed Width (Carriage Width),800 mm - 1600 mm Control Unit,"Fanuc, Siemens or Mitsubishi" X Axis Travel,600 mm - 1200 mm Z Axis Travel,Dependent on machine length (3m - 12m) Rapid Traverse (X/Z),4 - 8 m/min

Cnc lathe

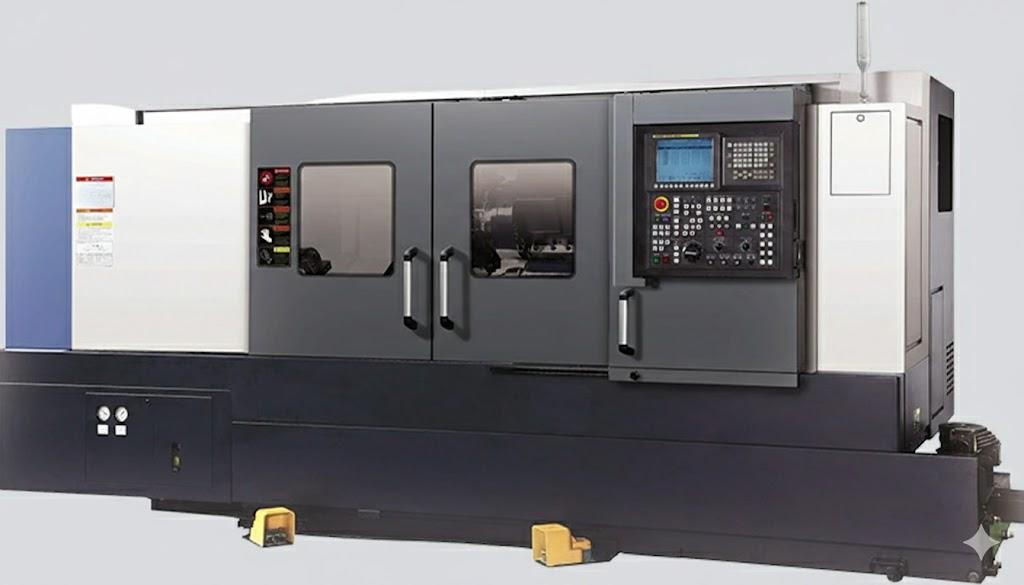

Control Panel: The digital display and keypad located on the right side is the CNC (Computer Numerical Control) unit, enabling the processing of complex parts with millimeter precision. Body Structure: The heavy-duty industrial type, robust body structure that minimizes vibration offers high accuracy in mass production. Safety Cabin: Features a fully enclosed protective cabin that prevents chip ejection and coolant leakage during processing. The operation can be safely monitored through observation windows. Application Area: Ideal for part production in the automotive, aerospace, defense industry, and general machinery manufacturing sectors. Additional Equipment: Foot pedals for operational control and pressure gauges (manometers) are located at the bottom. These types of machines are generally referred to as Horizontal CNC Lathes and are the cornerstone of modern workshops. Feature,Detail (Estimated/Standard) Control Unit,"Fanuc, Siemens or Mitsubishi (The panel in the visual appears to be Fanuc compatible)" Maximum Swing Diameter,400 - 600 mm Maximum Turning Length,1000 - 1500 mm Spindle Speed,"3,500 - 5,000 RPM" Spindle Motor Power,15 - 22 kW Turret Station Count,10 - 12 Stations (BMT or VDI type) Axis Movements,"X, Z (Optional: Y and C axis)" Rapid Traverse,24 - 30 m/min Tailstock Type,Hydraulic Programmable Tailstock Machine Weight,"Approximately 5,000 - 8,000 kg"

Cnc lathe

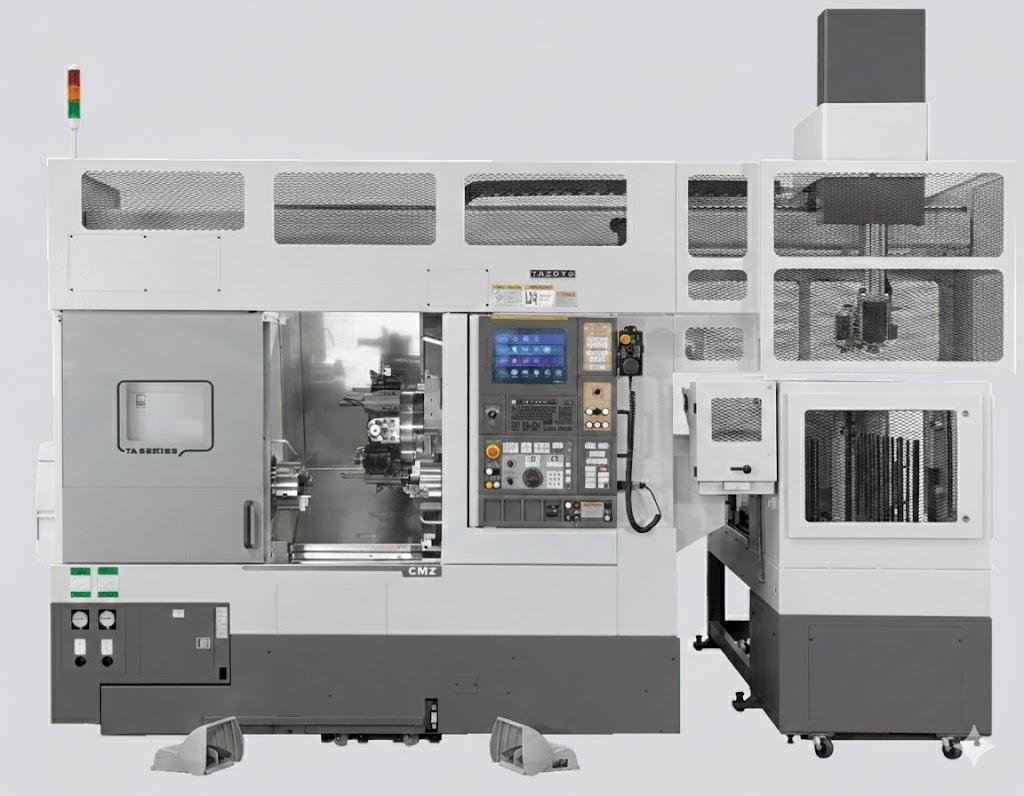

Technical Specifications and Description This machine is a machining center with integrated motor and high rigidity, specifically designed for completing complex parts in a single operation. Axes: In addition to X, Z, and Y axes, it includes a Sub-spindle for machining the rear surface of the workpiece. Turret Structure: Features driven tool stations capable of reaching 12,000 rpm, with integrated oil cooling and 75 Nm torque. Tool change time is approximately 0.2 seconds. Machining Capacity: Offers a maximum turning diameter of 460 mm and a machining length of 640 mm. Bar capacity can be 52, 66, or 82 mm depending on the model. Control Unit: Typically equipped with a high-precision Fanuc 32i-TB series control system. Automation: As seen in the visual, it is often integrated with robotic loading systems like Gantry Loader (GL20II) for unmanned production processes. Feature,Detail / Estimated Value Machine Type,CNC Lathe Center (High Precision) Control Unit,Fanuc (Based on the panel structure in the visual) Bed Structure,One-Piece Casting Body (High Rigidity) Machining Diameter (Max),400 - 640 mm (Varies by model) Machining Length (Max),400 - 1100 mm (Z-axis variations) Spindle,Integrated Motor (Built-in) or Belt Driven Turret Capacity,12 - 16 Stations (Driven Tool Option Available) Rapid Traverse (X/Z),~30 m/min Automation,Gantry Robot compatible (Structure on the right side of the visual)

Cnc lathe

Cnc lathe

Cnc lathe

Cnc lathe

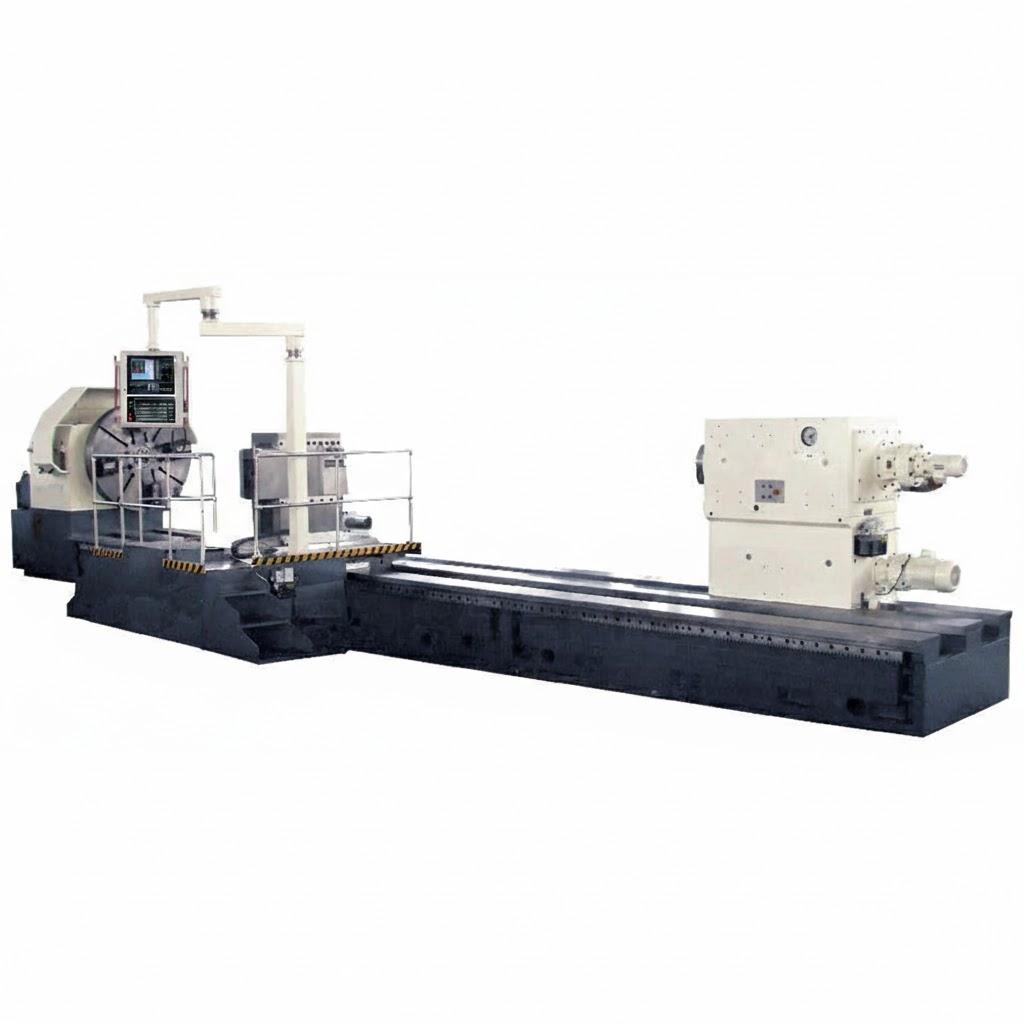

General Product Description This machine is a professional industrial solution manufactured for machining massive shafts, cylinders, and discs used in sectors such as energy, shipbuilding, mining, and aviation. Wide Machining Capacity: It can turn very long parts thanks to its long bed structure. CNC Control Unit: The advanced panel on it (operator cabin located on the left in the visual) allows for high-precision machining of complex geometries. Durable Structure: It is made of a cast iron body to absorb the weight of high-tonnage parts and the vibration generated during cutting. Safety and Operation: The operator platform and protective railings ensure safety during operation and close control of the part. Feature, Technical Detail / Capacity (Estimated) Control System,"Fanuc, Siemens or Mitsubishi CNC" Swing Over Bed,1000 mm - 2500 mm Maximum Machining Length,3000 mm - 12000 mm (Expandable) Maximum Workpiece Weight,10 Ton - 60 Ton (Depending on bed structure) Chuck Diameter,800 mm - 1600 mm Spindle Speed,1 - 500 RPM (With high torque gearbox) Motor Power,30 kW - 75 kW Bed Width,1000 mm - 1500 mm Turret Type,4 Station Electric or Hydraulic Turret Tailstock Diameter,200 mm - 400 mm (Hydraulically operated)
