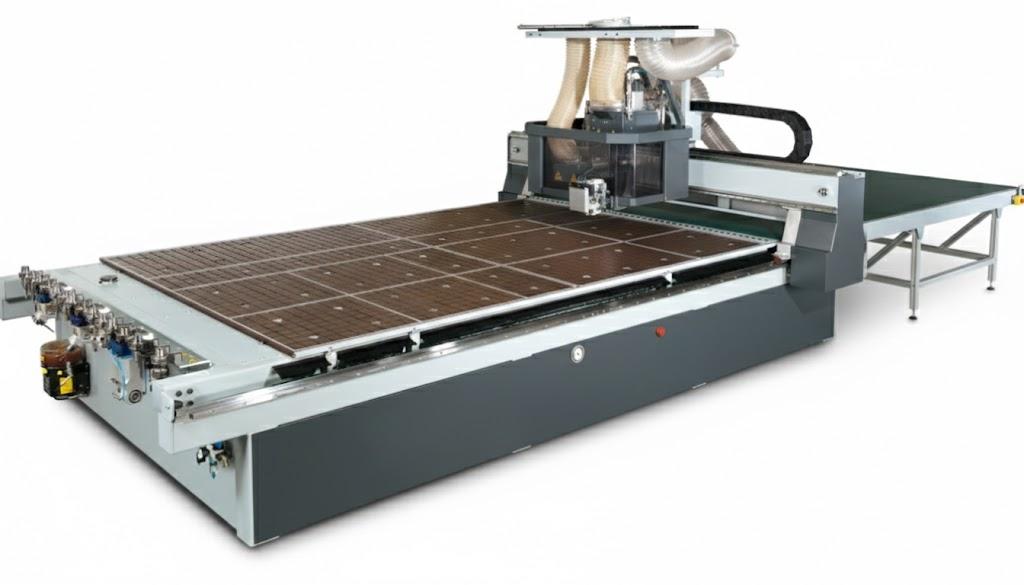

This machine is designed for cutting, drilling, and milling raw or laminated panels (chipboard, MDF, plexiglass, etc.) in a single operation. Thanks to "Nesting" technology, parts are arranged on the panel with minimal waste and processed at high speed. Key Features: Vacuum Table: The visible brown perforated surface secures parts with a strong vacuum, preventing slippage. Automatic Tool Changer: The head unit on top can automatically change bits for different operations (drilling, grooving, edge cutting). High Precision: Ensures cutting of complex shapes with millimeter-level accuracy thanks to the computer-controlled (CNC) system. Dust Extraction System: Features an integrated brush vacuum unit (white brushed part) for cleaning sawdust and dust generated during processing. Specification,Description / Estimated Value "Working Area (X, Y)",2100 mm x 3700 mm (or 2100x2800 mm) Z Axis Travel,150 mm - 250 mm Table Type,Vacuum Channel Phenolic Table (Nesting) Spindle Motor Power,9 kW - 12 kW (HSD or equivalent) Maximum Speed,24,000 RPM Tool Changer,8 - 12 Automatic Magazine (Linear or Rotary) X/Y Traverse Speed,60 - 80 m/min (Rapid traverse) Z Traverse Speed,20 - 25 m/min Vacuum Pump,250 m³/h (Dry type oil-free) Control Unit,"PC Based Industrial CNC (e.g., LNC, Syntec or Siemens)" Drive System,Helical Rack and Pinion (X-Y) / Ball Screw (Z) Automation,Automatic Lubrication System & Dust Extraction Interface
$null

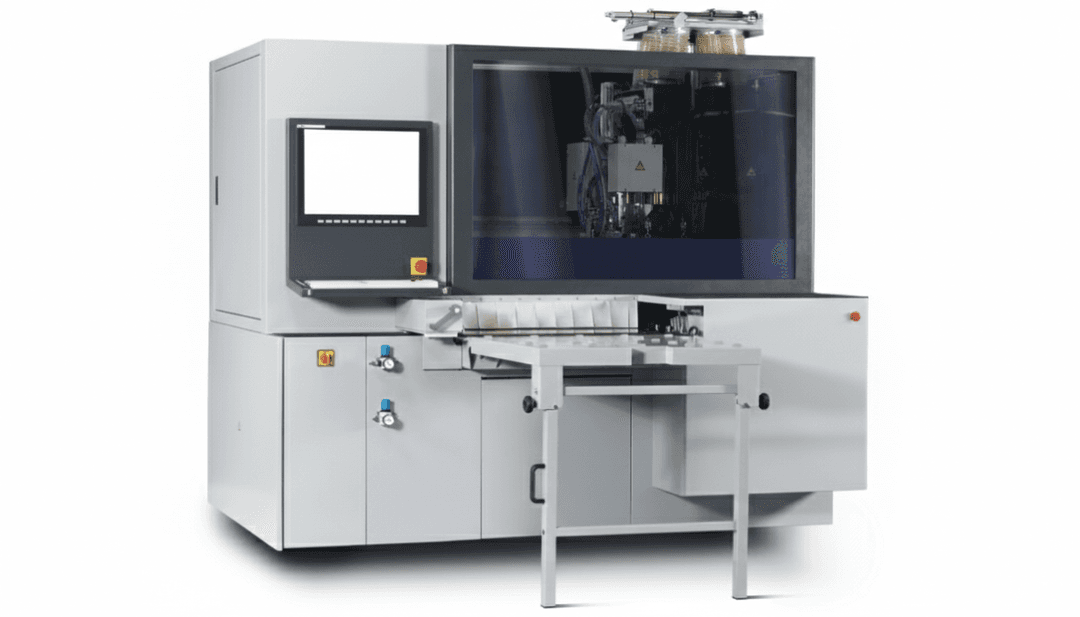

Product Description This machine is a compact processing unit designed for drilling, grooving, and milling operations on parts in panel furniture production (kitchen cabinets, wardrobes, office furniture). Key Features: Compact Design: Saves space in production facilities by occupying a small footprint. Fast Processing: Capable of high-speed drilling and grooving on all six surfaces of panels. CNC Control Panel: Complex cutting and drilling plans can be easily managed via the integrated screen located on the left side. Vacuum Clamping: Precisely secures workpieces to prevent slippage during processing. Safety Cabinet: The processing area is protected by a large glass panel, enhancing operator safety while allowing external monitoring of the process. Feature,Technical Details (Estimated Values) Control System,Industrial PC & PLC Controlled (Touch Screen)"Processing Area (X, Y, Z)",3000 mm x 1000 mm x 60 mm (May vary) Drilling Group,Multiple vertical and horizontal drilling units Saw Unit,Integrated X-axis saw for grooves Spindle Speed,18,000 - 24,000 RPM Maximum Feed Rate,60 - 80 m/min Air Pressure Requirement,6-8 Bar Total Power Consumption,10 - 15 kW Dust Extraction Connection,Ø 150 - 200 mm Machine Weight,Approximately 1,500 - 2,500 kg
$null

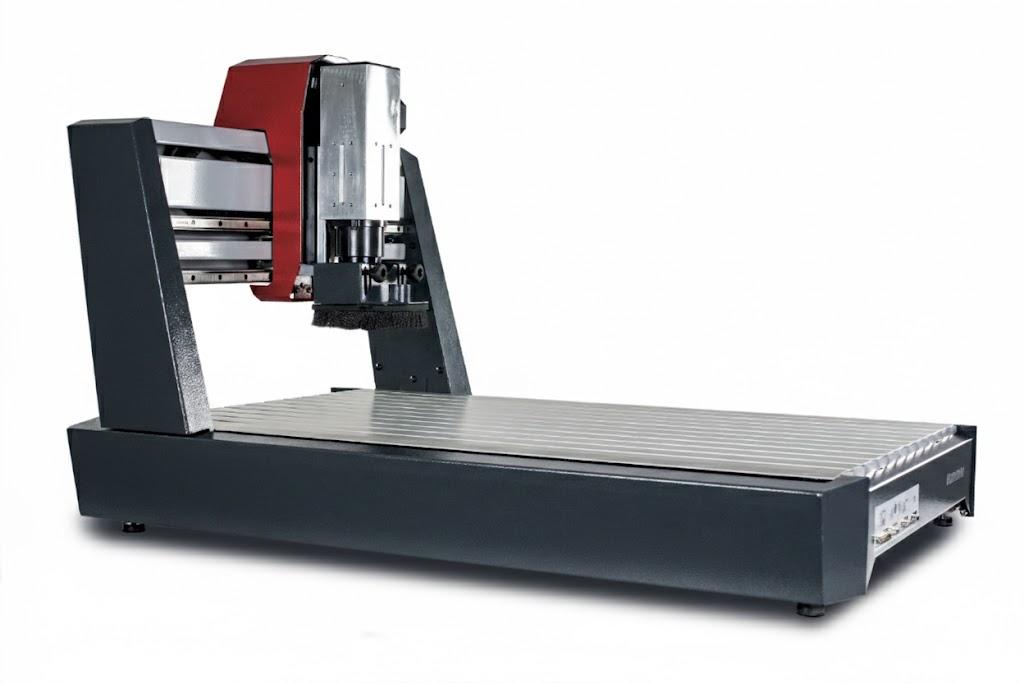

Comprehensive Product Description and Features1. Mechanical Structure and Stability:Frame Design: Features a heavy-duty chassis that absorbs vibration. This ensures no degradation in cutting quality even at high speeds.Gantry Technology: The moving bridge (gantry) structure offers a wide working area while keeping the workpiece stable, allowing for precise engravings.Linear Systems: Axis movements are provided by industrial-grade ball screws and precision linear guides, offering micron-level repeatability.2. Versatile Material Processing Capacity:This machine performs at a high level with a wide range of materials:Wood Group: Solid woods, all types of MDF, plywood, and exotic wood species.Engineering Plastics: Plexiglass (acrylic), polycarbonate, delrin, and PVC.Soft Metals: Precision milling of non-ferrous metals such as aluminum, brass, and copper.Composites: Carbon fiber panels and composite sheets used in the advertising industry.3. Functional Details:Dust Protection System: An integrated brush-equipped suction mechanism on the cutting head ensures immediate chip removal, protecting operator health and extending the life of the cutting tool.T-Slot Table: Features a large table surface with standard T-slots for quick and secure workpiece clamping.High Z-Axis Clearance: The ample clearance in the Z-axis is suitable not only for thin sheets but also for processing thick blocks or pre-shaped high parts.ApplicationsAdvertising and Signage: Relief logos, illuminated sign components, and 3D letter cutting.Furniture and Decoration: Custom furniture accessories, door carvings, and artistic wall panels.Industrial Prototyping: Mold making and part testing processes before mass production.Model Making: Millimeter-precise production of architectural models and technical models. Feature,Detail "Working Area (X, Y, Z)",825 x 479 x 160 mm Table Size,1000 x 600 mm Positioning Accuracy,± 0.05 mm Repeatability,± 0.1 mm Drive System,Precision Ball Screws (All axes) Guide System,Profile Rail Linear Guides Maximum Feed Rate,5 m/min Rapid Traverse Rate,7 m/min Spindle Option,1000W - 2200W (User dependent) Control Software,Source code or industrial standard software Chassis Structure,High-strength steel and cast aluminum components Machine Weight,Approx. 110 kg
$null
Vacuum Table Body: The machine's large brown surface is a "Grid" type table that secures parts with a strong vacuum during processing to prevent movement. Automatic Tool Changer: The units seen on the front left allow the machine to switch between different blades and bits without human intervention. Dust Extraction System: The bellows-like white hoses on the top instantly remove chips and dust generated during cutting, maintaining precision. Nesting Technology: Saves raw material by arranging dozens of different parts on a single sheet with minimal gaps. Application Areas: Kitchen cabinet production, office furniture, door panels, and decorative woodworking. Feature,Description / Standard Values "Working Area (X, Y, Z)",2100 x 3700 mm / 2100 x 4200 mm (Z-axis: 200-300 mm) Table Structure,Multi-zone vacuum table (High-density phenolic surface) Vacuum Pump Capacity,250 m³/h - 500 m³/h (Usually dry type) Spindle Power,9 kW - 12 kW (Air or Liquid cooled) Maximum Spindle Speed,"24,000 RPM" Tool Changer Capacity,8 - 12 - 16 Automatic Magazine (Linear or Rotary) Drilling Unit,9 vertical + 4 horizontal + 1 saw (Varies by configuration) Axis Speeds (X/Y/Z),"X/Y: 60-80 m/min, Z: 20-30 m/min" Drive System,"Helical Gear & Rack (X-Y), Ball Screw (Z)" Control Unit,"Industrial PC based (e.g., OSAI, Syntec, or Siemens)" Automation Options,Automatic loading elevator and unloading conveyor (Seen on the right in the image)
$null

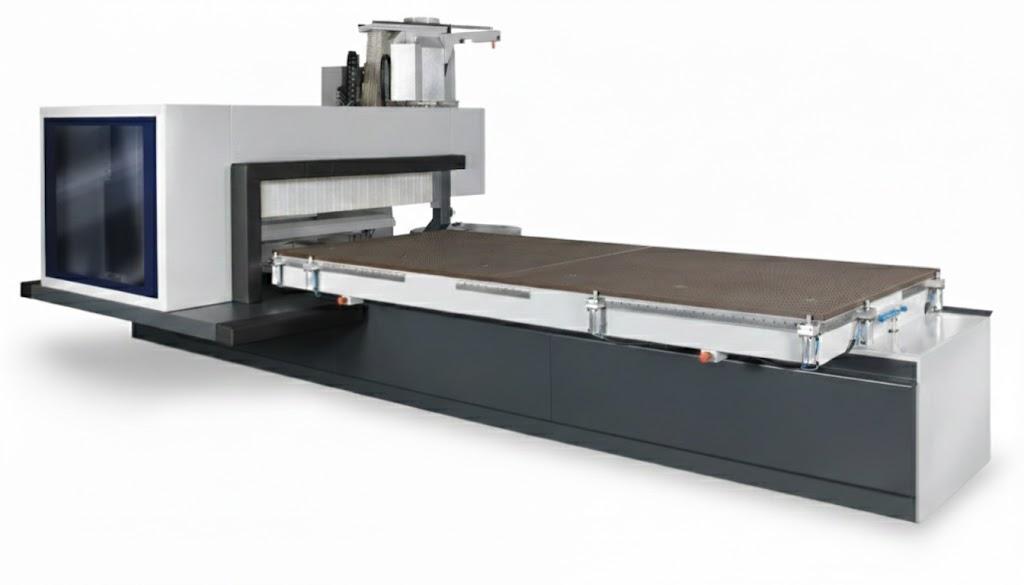

A high-performance industrial platform developed for large-scale panel processing and the production of complex wood forms. Its flexible structure makes it unrivaled in the production of doors, windows, stairs, and custom furniture parts. Flexible Pod System: The adjustable vacuum pod structure allows the underside of the workpiece to be free, enabling complex milling and 360-degree cutting operations. High-Speed Aggregate Change: Thanks to the multi-tool changer magazine, the machine switches between different cutting bits without stopping. This feature significantly reduces production time. Dust Extraction and Safety Equipment: Equipped with a high-vacuum suction system that instantly removes chips generated during operation and laser/light barriers that ensure operator safety. Stability and Durability: The heavy steel frame structure dampens vibration even at the highest operating speeds, guaranteeing a smooth and flawless surface finish. Feature,Detail / Value Machine Type,Pod & Rail CNC Machining Center Number of Axes,3 - 5 Axes (Depending on configuration) X Axis Working Area,3,000 mm - 6,000 mm Y Axis Working Area,1,300 mm - 1,600 mm Z Axis Clearance Height,200 mm - 300 mm Number of Pods (Rails),6 - 8 Units (6 clearly visible in the image) Vacuum Pods,2-3 adjustable pods on each rail Spindle Power,9 kW - 15 kW (Air or Liquid Cooled) Maximum RPM,24,000 RPM Tool Changer,12 - 24 Station Automatic Magazine Vacuum Pump Capacity,100 m³/h - 250 m³/h Control Unit,Industrial PC-Based Control System
$null

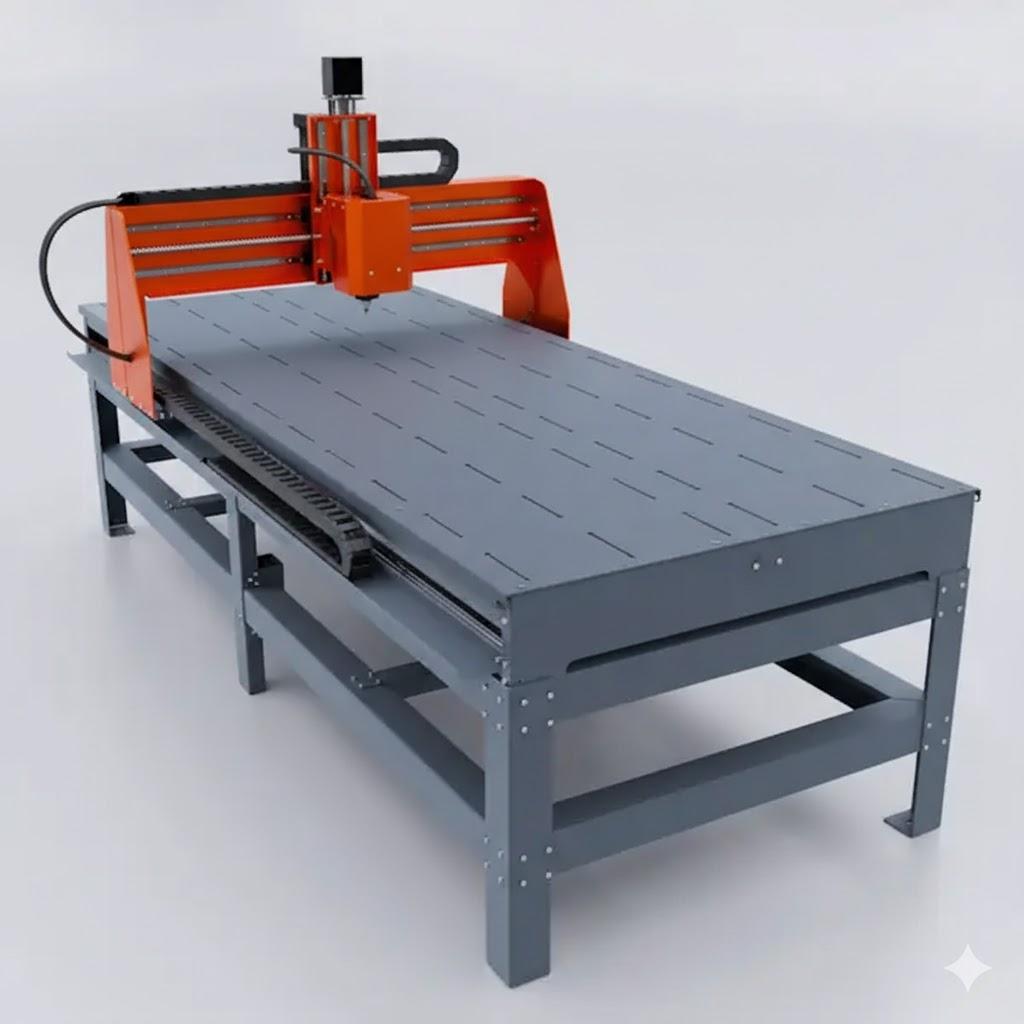

This is a compact yet powerful CNC router model with a 1000x2200 mm working area. It is an ideal solution for woodworking, aluminum cutting, and small-scale industrial production. Product Description This machine is a large-bed machining center designed for precise cutting, engraving, or shaping of materials such as wood, plastic, aluminum, and similar hardness materials using computer control. Key Features: Large Working Area: Expanded table structure for easy handling of long parts or serial production. Gantry Design: The moving gantry system allows the cutting tool to move on the X, Y, and Z axes while the material remains stationary. Durable Chassis: Robust metal frame that minimizes vibration and increases precision. Cable Carrier Channel: Professional channel system that prevents damage to cables in moving parts. Application Areas: Furniture design and decorative woodworking. Signage and acrylic cutting jobs. Mold preparation and prototype production. Specifications, Technical Details "Working Area (X, Y, Z)",1300 x 2500 x 200 mm (Or 2100 x 2800 mm optional) Table Structure,T-Slotted Aluminum Table or Vacuum Table Spindle Motor,2.2 kW / 4.5 kW / 6 kW (Air or Water Cooled) Spindle Speed,18,000 - 24,000 RPM Drive System (X & Y Axis),Helical Rack and Pinion and Linear Rails Drive System (Z Axis),Ball Screw Motor Type,Stepper Motor or Leadshine Servo Motor Control System,"DSP Handheld Controller, Mach3 or LNC Control" Maximum Idle Speed,25,000 mm/min Maximum Cutting Speed,15,000 mm/min Positioning Accuracy,±0.05 mm Working Voltage,AC 380V (3 Phase) or AC 220V (Optional) Supported File Formats,"G-Code, .nc, .tap (ArtCam, Aspire etc. compatible)"
$null

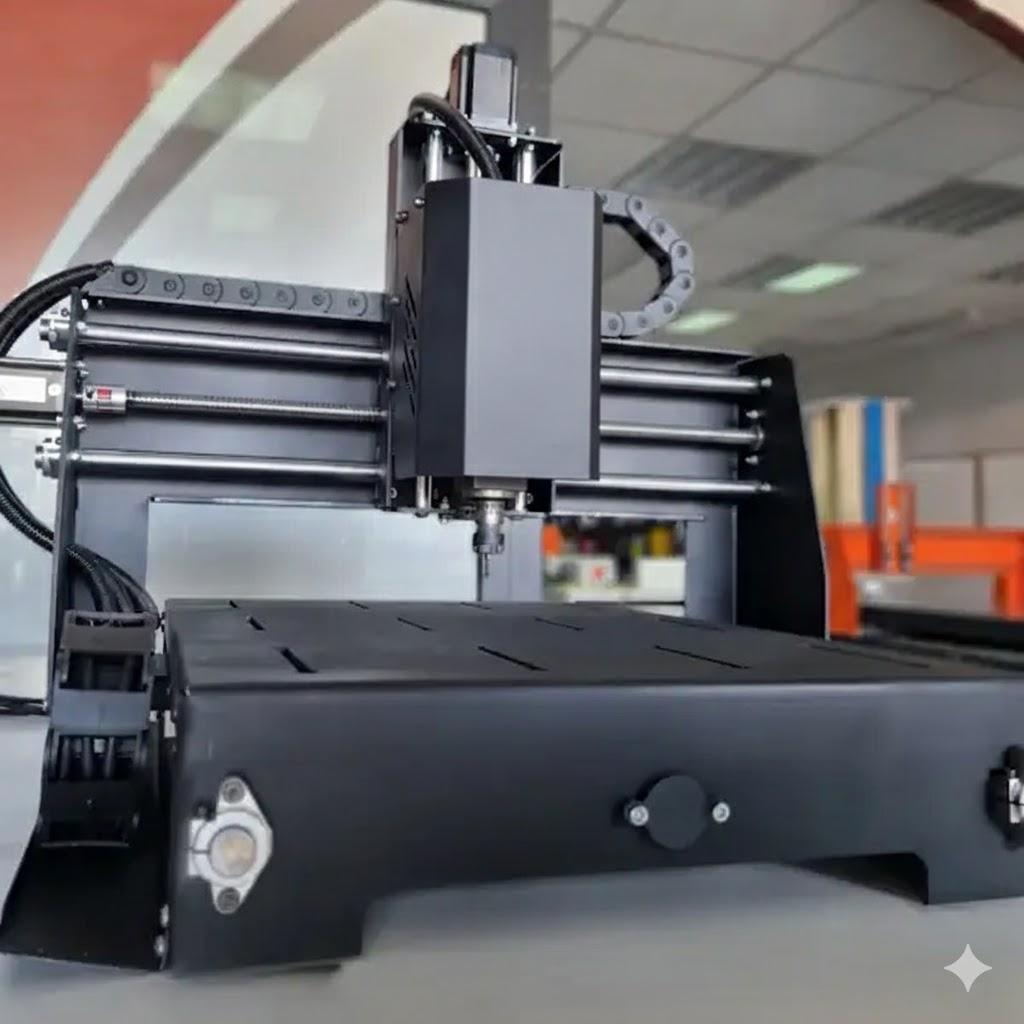

, is a compact and economical CNC router model specially developed for small workshops and hobby users. This machine, which can perform high-precision cutting, engraving, and drilling operations on wood, plastic, and similar soft materials, is also a practical and reliable solution for educational institutions. General Description: This machine is used for cutting, engraving, and shaping operations on wood, plastic, plexiglass, and sometimes soft metals (like aluminum). By its design, it has a robust body and precise movement capability. Key Features: 3-Axis Movement: It can process complex 3D designs by moving on X, Y, and Z axes. Drag Chains: The black-ringed structures in the photo prevent cables from tangling and getting damaged during movement. Compact Design: Designed to take up little space in workshops or on desks. Application Areas: Ideal for prototype production, sign making, furniture decoration, DIY (do-it-yourself) projects, and personalized gift production. Feature,Typical Value / Detail Device Type,3-Axis Desktop CNC Router Working Area (X/Y/Z),Approximately 300 x 400 x 100 mm (Estimated) Body Material,Aluminum Profile and Steel Plate Spindle Power,500W - 1.5kW (Air or Water Cooled) Spindle Speed,"0 - 24,000 RPM" Motor Type,NEMA 23 Step Motors Drive System,Ball Screw or Trapezoidal Screw Rail System,Linear Rails and Bearings Precision,±0.03 mm - 0.05 mm Supported Software,"Mach3, Candle, GRBL, Fusion 360" Machinable Materials,"Wood, Plexiglass, PVC, Soft Metals (Aluminum, Brass)"
$null

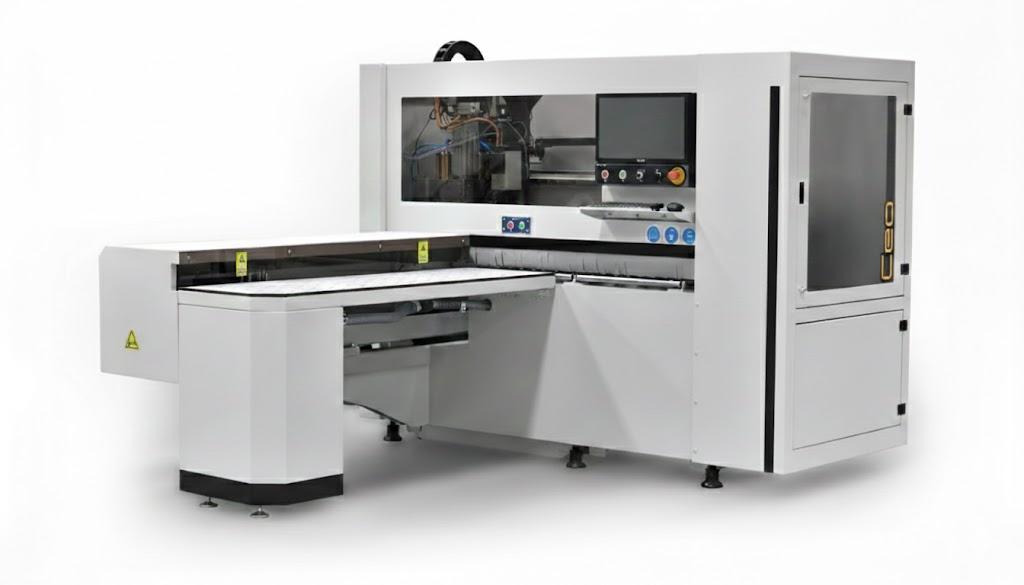

General Description and FeaturesFunction: Used for high-precision drilling, grooving, and surface processing operations in panel furniture production.Control Unit: Equipped with Italian TPA software. This user-friendly software allows for easy design and programming through CAD/CAM modules.Part Positioning: The workpiece is positioned very quickly and precisely thanks to servo motor-controlled grippers.Multi-Drilling Unit: It has a structure capable of drilling on 5 different surfaces, both top and side, and also has the capability for fast grooving with a saw unit.Air Table: Features an air table system that allows workpieces to be processed by sliding them easily without scratching the machine.Spindle Motor: Has a powerful spindle motor for corner cutting and milling operations in addition to drilling.Technical Details (For CEO Plus Model)FeatureValue (Approximate)Length4750 mmWidth2350 mmHeight2100 mmWeight~2900 kg Feature,Description / Standard Values Machine Type,CNC Drilling and Milling Machine (PTP / Through-feed) Panel Width,Min: 50 mm / Max: 1000 - 1200 mm Panel Length,Min: 200 mm / Max: Unlimited (Conveyor system) Panel Thickness,8 mm - 60 mm X/Y/Z Axis Speed,60 - 80 m/min (Fast positioning) Drilling Unit,Vertical and Horizontal drilling spindles (L configuration) Milling Motor,3.5 kW - 5.5 kW (Optional ISO30/ER32 collet) Control System,Industrial PC and Windows-based interface Air Pressure,6 - 8 Bar Weight,Approximately 1500 - 2500 kg
$null
