Veneer press

Veneer press

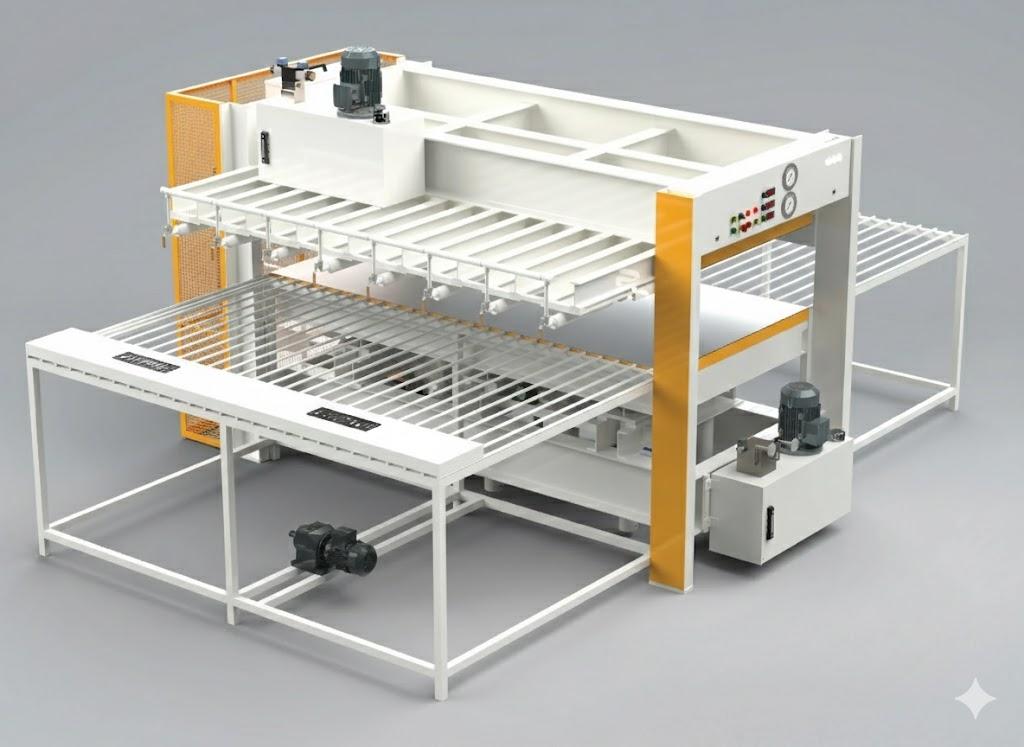

Width: 1300 mm Length: 3000 mm Number of Lower Rollers: 8 units Number of Side Rollers: 8 units Lower Pressure Power: 100 tons Side Pressure Power: 10 tons Opening Size: 400 mm Plate Type: Stainless Steel Heating System: Oil System 1. Sections and Components Feeding Stand (Front Part): Grated metal bench, allows large panels (MDF, Particleboard, Plexiglass, etc.) placed on it to be easily fed into the machine. Vacuum Conveying Unit: The white arms and suction cups on the upper part are designed to grip the panel with air pressure and move it to the next stage. Hydraulic/Electric Motors: The gray motors on the top and sides provide pressing pressure or the movement of conveyor belts. Control Panel: Analog gauges (pressure gauges) and buttons on the right side of the machine are used to control pressure adjustment and working speed. Safety Cage: The orange-wired partition at the back is placed to prevent moving parts from harming the operator. 2. What is it Used For? This type of machine is generally used for the following processes: Lamination: Bonding two different materials (e.g., a veneer glued onto wood or PVC) together with high pressure. Automatic Stacking: Arranging cut pieces neatly on top of each other. Transfer: Moving heavy panels from one point to another in the production line without manual handling. 3. Featured Properties Industrial Design: The robust steel body structure is suitable for long-term heavy workloads. Precise Pressure: The gauges (pressure indicators) on the side ensure that the material is pressed to the perfect consistency without being crushed.

Veneer press

Width: 1300 mm Length: 4500 mm Number of Lower Rollers: 10 units Number of Side Rollers: 12 units Lower Pressure Power: 120 tons Side Pressure Power: 15 tons Opening Size: 400 mm Plate Type: Stainless Steel Heating System: Oil System 1. Purpose of Use This machine is used to bond different layers (e.g., EPS, Rockwool, or Polyurethane filling material placed between two metal sheets) under high pressure. This process is called cold pressing. 2. Basic Structure and Components Infeed and Outfeed Tables: White-railed tables located at the front and back of the machine allow heavy panels to be easily slid in and out after the process is complete. Press Body: The massive steel structure in the center applies tons of uniform pressure onto the material. Hydraulic System: The motors and hydraulic units visible at the top and sides are the main components providing the pressing power. Control Panel: The gauges (manometers) and buttons located on the yellow column on the right allow the operator to adjust pressure and pressing time. 3. Key Features Durability: Features an industrial heavy-duty chassis. Precision: Applies uniform pressure to every point of the panel, preventing material waviness or unbonded areas. Capacity: The "1345" in the model name typically represents the dimensions of the working area (e.g., 1300 mm width and 4500 mm length). 4. In Which Sectors Is It Used? Prefabricated Structures: Container and prefabricated house wall panels. Refrigeration Industry: Cold storage panels and doors. Caravans and Mobile Homes: Manufacturing of vehicle body or caravan walls.

Veneer press

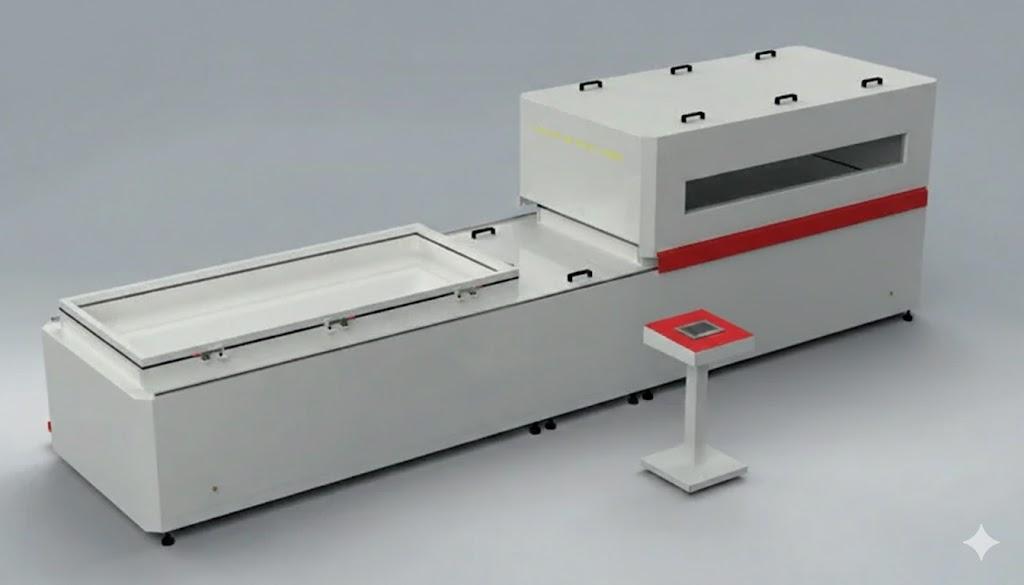

1. Purpose of Use This machine is used to adhere PVC foil, natural veneer, or transfer papers onto wood panels such as MDF and particleboard using high temperature and vacuum power. It is the main machine for the production of kitchen cabinet doors (membrane doors), bathroom cabinets, and panel doors. 2. How it Works? Preparation: The pieces to be covered are arranged on the table on the left side of the machine, and the foil with adhesive applied is laid over them. Heating: The upper section on the right side of the machine (heating unit) comes over the table or the table moves in. The heating elements inside heat the foil to soften it. Vacuum: The air is completely evacuated. Thanks to the vacuum power, the softened foil adheres perfectly to all the contours (three-dimensional shapes) of the piece. 3. Design Details Control Panel: A small stand (monitor) rising from the floor allows the operator to adjust the vacuum time and temperature. Body: The large and robust white body is an industrial structure resistant to high pressure and temperature. Rail System: A rail system is available that allows the table to easily move in and out of the heating chamber.
