1. Working Principle A guillotine shear works just like a giant paper cutter. Sheet metal is placed in the gap between an upper blade (moving) and a lower blade (fixed). With tons of pressing force applied by hydraulic cylinders, the upper blade descends and cuts the sheet metal using the "guillotine" method. 2. Key Components and Their Functions NC/CNC Control Panel (The Part We Added to the Left): Allows you to digitally adjust the cutting length, blade gap according to sheet thickness, and back gauge distance. Hydraulic Press Cylinders (Below the Red Stripe): Securely fix the sheet metal to the table with immense force to prevent slipping during cutting. Blade Gap Adjustment: The gap between the two blades is adjusted millimeter by millimeter according to the hardness and thickness of the metal to be cut. This is critical for a burr-free and smooth cutting surface. Front Support Arms: These arms, equipped with a ruler, allow for the proper placement of large sheet metal plates on the table and enable the operator to easily align the sheet metal. Back Gauge (At the Rear of the Machine): A precise mechanism that determines how far into the material the cut will be made. It moves forward and backward according to the value entered from the control panel. 3. Applications Production of automotive body parts. Manufacturing of ventilation ducts and panels. Preparation of steel construction structural elements. Specifications,Standard Values (3200 mm Model) Maximum Cutting Length,3200 mm Cutting Capacity (Mild Steel),6 mm (Models available for 4-25 mm depending on material) Cutting Angle,0.5° – 2.5° (Adjustable to prevent deformation) Motor Power,7.5 kW Strokes Per Minute,12 – 16 strokes/min Back Gauge Distance,600 – 1000 mm (NC controlled) Blade Material,6CrW2Si (High-strength steel) Approximate Weight,5,000 – 6,500 kg

Shearing machine

This machine is designed for precise and fast cutting of sheet metal along straight lines. The "3106" designation typically refers to the machine's capacity: 3100 mm cutting length and 6 mm cutting thickness. Technical Specifications and Description The machine's basic functions and prominent features are as follows: Cutting Capacity: Capable of cutting sheets up to a maximum length of 3060 mm and a thickness of 6 mm (for steel sheets). Precise Cutting: The backgauge position can be adjusted millimeter by millimeter thanks to the NC (Numerical Control) unit, ensuring high consistency in mass production. Hydraulic Clamping System: Equipped with powerful hydraulic clamping units that secure the sheet to the table, preventing slippage during the cutting process. Ease of Use: Controllable via a foot pedal, allowing the operator to align the sheet with both hands. Safety: Fitted with front safety guards and emergency stop buttons for operator safety. Durable Construction: Features a welded steel construction body with static and dynamic rigidity, ensuring long-lasting use. Application Areas Metal goods manufacturing Automotive auxiliary industry Construction and panel production Shipbuilding and aerospace industry

Shearing machine

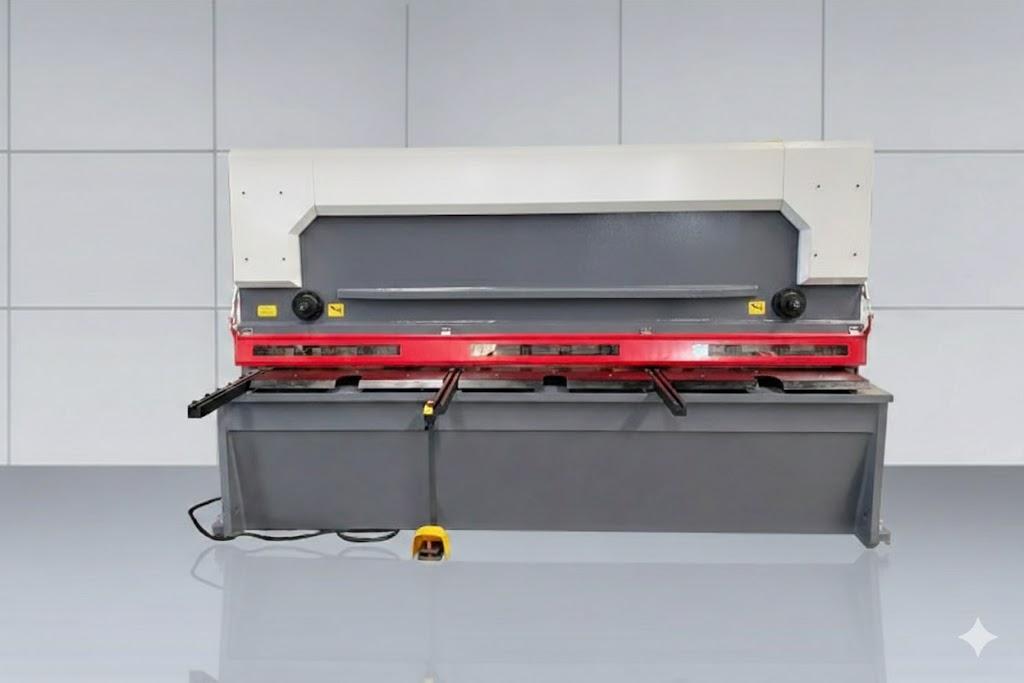

A professional guillotine shear designed for businesses seeking maximum efficiency and flawless surface quality in sheet metal cutting. Thanks to its reinforced body structure and advanced CNC control unit, it cuts with millimeter precision even with different material thicknesses. Precision Cutting Technology: The variable cutting angle feature prevents twisting (bending) in thin and thick sheets, ensuring smooth strips. CNC Control System: Automatic blade gap, cutting angle, and back gauge adjustments can be made in seconds via the touchscreen. High-Speed Back Gauge: The motorized back gauge with a precision ball screw system offers high accuracy and speed in serial production. Ball Table Structure: Allows heavy sheet metal to be easily moved on the table, reducing operator fatigue and preventing surface scratches. Technical Highlights Feature Benefit Hydraulic Press System Independent hydraulic pressure cylinders that prevent the sheet from slipping during cutting. Shadow Line Illumination Projection system that enables error-free cutting along the marked line. Durable Blades Long-lasting, wear-resistant, and versatile upper-lower blades. Safety Barriers Front finger guard and rear light barriers (CE compliant) that protect the working area. Areas of Use: Shipbuilding, defense industry, steel service centers, and heavy machinery manufacturing workshops. Feature,Value (Example/Typical),Unit Cutting Capacity (Mild Steel),6 - 10,mm Cutting Capacity (Stainless),4 - 6,mm Cutting Length,3100 - 4100,mm Cutting Angle,0.5° - 2.0°,Degrees Strokes Per Minute,10 - 15,strokes/min Back Gauge Distance,750 - 1000,mm Motor Power,11 - 15,kW Oil Tank Capacity,150 - 250,Liters Throat Depth,50 - 350,mm Approximate Weight,6500 - 9000,kg

Shearing machine

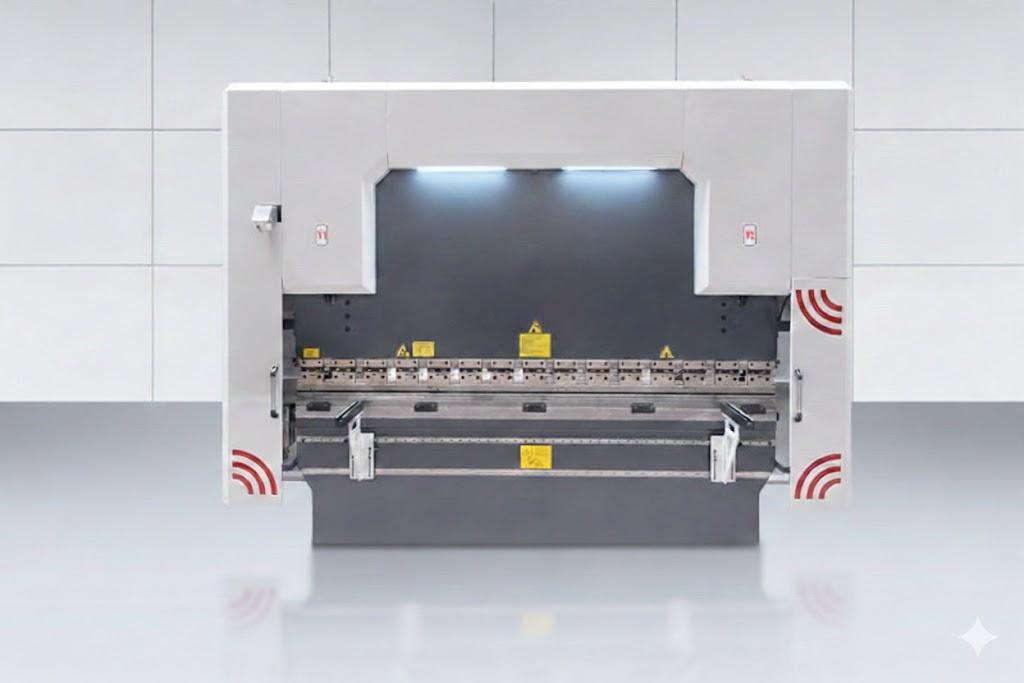

Elite-Bend Series is an advanced technology press brake solution that combines high precision, speed, and safety in metal sheet bending operations. With its modern design and robust construction, it delivers excellent results in mass production lines and boutique custom projects.Precision Bending Technology: Thanks to the integrated CNC control system, bending angles are adjusted with millimeter accuracy, ensuring standard and high quality in every part.Advanced Backgauge System: With multi-axis (X, R, Z1, Z2) movement capability, it performs bending of complex shaped parts quickly and flawlessly.Maximum Safety: Operator safety is kept at the highest level with laser protection sensors located at the front of the machine and side guard barriers.Ergonomic Workspace: It offers an efficient working environment with an integrated LED lighting system and easily adjustable front support arms.Technical HighlightsFeatureDescriptionControl UnitUser-friendly CNC screen with graphic simulation support.Crowning SystemAutomatic crowning (Crowning) that eliminates angle difference in long bends.Die SystemQuick Release upper and lower die holders.Foot PedalErgonomically designed control pedal with emergency stop button.Usage Areas: Defense industry, automotive parts manufacturing, electrical panel manufacturing, and architectural metal structure solutions. Feature,Description / Estimated Value Machine Type,Hydraulic or Servo-Hydraulic Press Brake Bending Force (Tonnage),40 - 200 Tons (Varies by model) Bending Length,1250 mm - 4000 mm Control System (CNC),"Multi-axis (Y1, Y2, X, R, Z1, Z2) touch panel" Backgauge System,Precision ball screw and linear guide system Safety Equipment,Front laser protection and side guards Crowning,Manual or Automatic (CNC controlled) Maximum Stroke,150 - 300 mm

Shearing machine

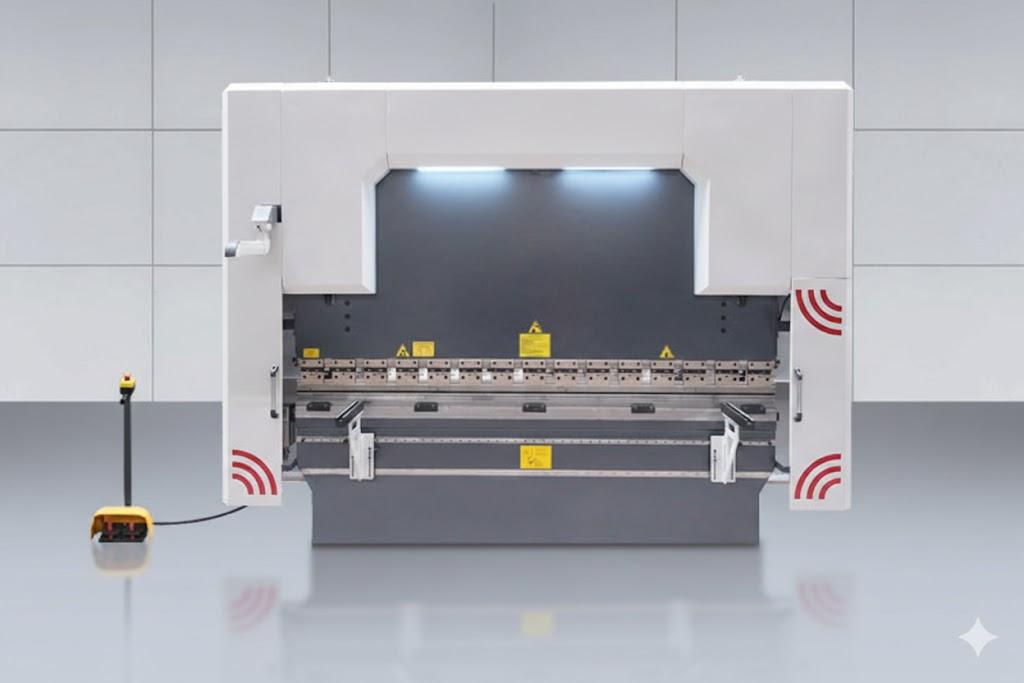

This CNC Press Brake is an advanced technology processing center designed to provide maximum speed and millimeter precision in complex bending operations. With its reinforced body structure and multi-axis control system, it easily performs the most challenging bending forms with high repeatability. Multi-Axis Control Capacity: Accelerates the production of complex parts by providing full synchronization in the backgauge and bending axes (Y1, Y2, X, R, etc.). Precision Bending Technology: Thanks to the advanced crowning system, it guarantees that long parts are bent at the same angle along the entire line. High Safety Standards: Equipped with laser protection systems and side guard covers that ensure operator safety. Feature,Detail / Value Machine Type,CNC Hydraulic Press Brake Control Unit,"Multi-axis CNC (Y1, Y2, X, R optional)" Bending Force (Tonnage),40 - 160 Ton (Varies by model) Bending Length,1250 mm - 3100 mm Distance Between Columns,1000 mm - 2600 mm Throat Depth,250 mm - 410 mm Stroke,150 mm - 250 mm Maximum Opening (Daylight),350 mm - 500 mm Lowering Speed,100 - 150 mm/sec Bending Speed,8 - 10 mm/sec Retraction Speed,100 - 120 mm/sec Backgauge Travel,650 mm - 1000 mm Motor Power,5.5 kW - 15 kW Oil Tank Capacity,100 - 250 Liters Energy Efficiency: Offers low energy consumption and quiet operation performance thanks to its optimized hydraulic system. Technical Specifications Frame: Welded steel construction, stress-relieved rigid frame. Die System: Upper and lower table compatible with quick die change systems (Promecam/Amada type). Control Panel: User-friendly touchscreen with graphic support, capable of 2D or 3D simulation. Lighting: Integrated LED lighting system that ensures clear visibility of the working area. Applications: Aerospace, automotive body parts, electrical panel manufacturing, elevator industry, and general machinery production.

Shearing machine

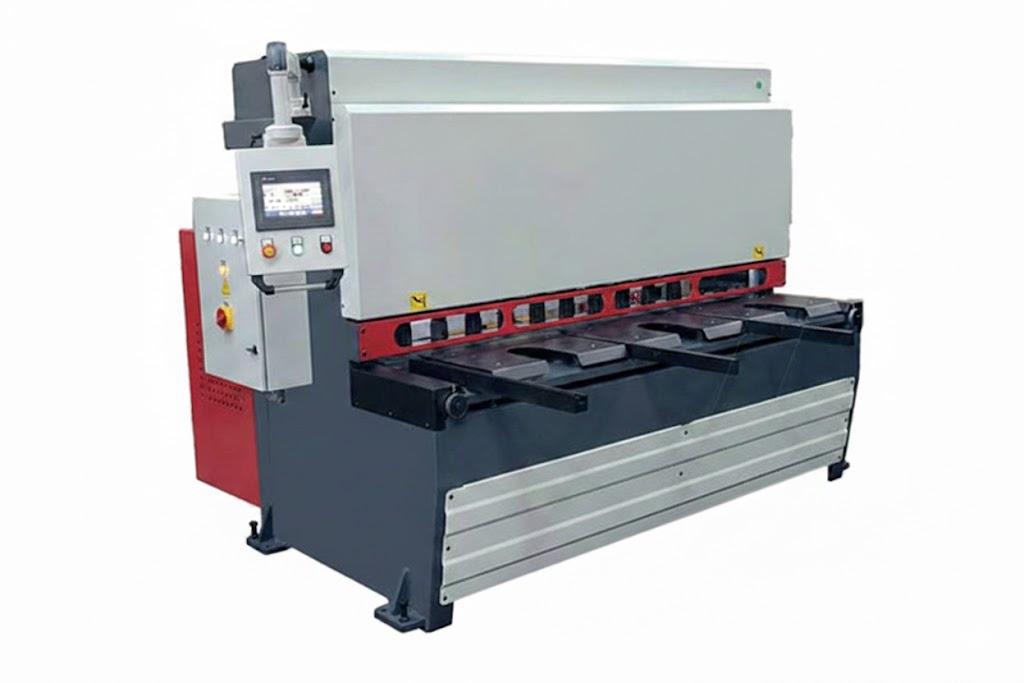

This CNC Hydraulic Guillotine Shear offers a solution beyond industrial standards for high-precision metal cutting operations. With its integrated touch control panel and automatic adjustment mechanisms, it maximizes production speed and quality while minimizing operator errors.Touch CNC Control Unit: Allows easy programming of parameters such as cutting length, back gauge distance, and quantity.Automatic Blade Gap Adjustment: Ensures a flawless cut every time by automatically adjusting the blade gap according to the thickness of the material to be cut.Advanced Hydraulic System: Provides energy savings with precise pressure control and allows for quiet machine operation.Large Working Area: Front support arms and ball table structure allow heavy sheet metal to be easily moved on the machine.Outstanding Technical AdvantagesFeatureBenefitDigital Back GaugePositioning with high speed and 0.1 mm precision.Shadow Line IlluminationEnsures accurate cutting by allowing the cutting line to be clearly seen.Safety SystemsRear protection barriers and CE-compliant emergency stop units.High Cutting SpeedHigh stroke capacity that can be integrated into mass production lines. Feature,Unit,Value (Estimated/Standard) Cutting Capacity (Mild Steel),mm,4 - 10 Cutting Capacity (Stainless),mm,2.5 - 6 Cutting Length,mm,2500 - 3100 Cutting Angle,degrees,0.5°−2.0° Strokes Per Minute,pieces/min,10 - 20 Back Gauge Distance,mm,750 - 1000 Motor Power,kW,7.5 - 15 Oil Tank Capacity,Liters,150 - 200 Table Height,mm,800 - 900 Total Weight,kg,4500 - 7500
