Width: 1300 mm Length: 2500 mm Number of Cylinders: 6 units Pressing Power: 50 tons Opening Size: 400 mm Plate Type: MDF Frame (Chassis): Features a robust, white-painted steel construction to withstand heavy loads and pressure. Hydraulic Cylinders: Located at the bottom of the machine, there are 6 powerful hydraulic pistons (chrome-plated shafts) that apply pressure by pushing the upper platen upwards. Control Panel: The panel, located on the side, allows for machine operation with a pressure gauge (manometer), emergency stop button, and operational buttons. Motor and Hydraulic Unit: The electric motor, positioned on the right side, provides the necessary power to the hydraulic system. Rack and Pinion System: Vertical gear racks on both sides of the platen ensure the platen moves completely parallel during pressing and presses evenly. Purpose of Use These types of machines are generally used for the following processes: Lamination: Gluing veneer, laminate, or MDF onto wood panels. Panel Joining: Pressing multiple layers together under high pressure. Forming: Shaping material using specific molds. Technical Details The design shown, with its open structure, allows the operator to easily load and unload material from both sides. It is often preferred in door production, furniture panels, and flooring production lines.
$null

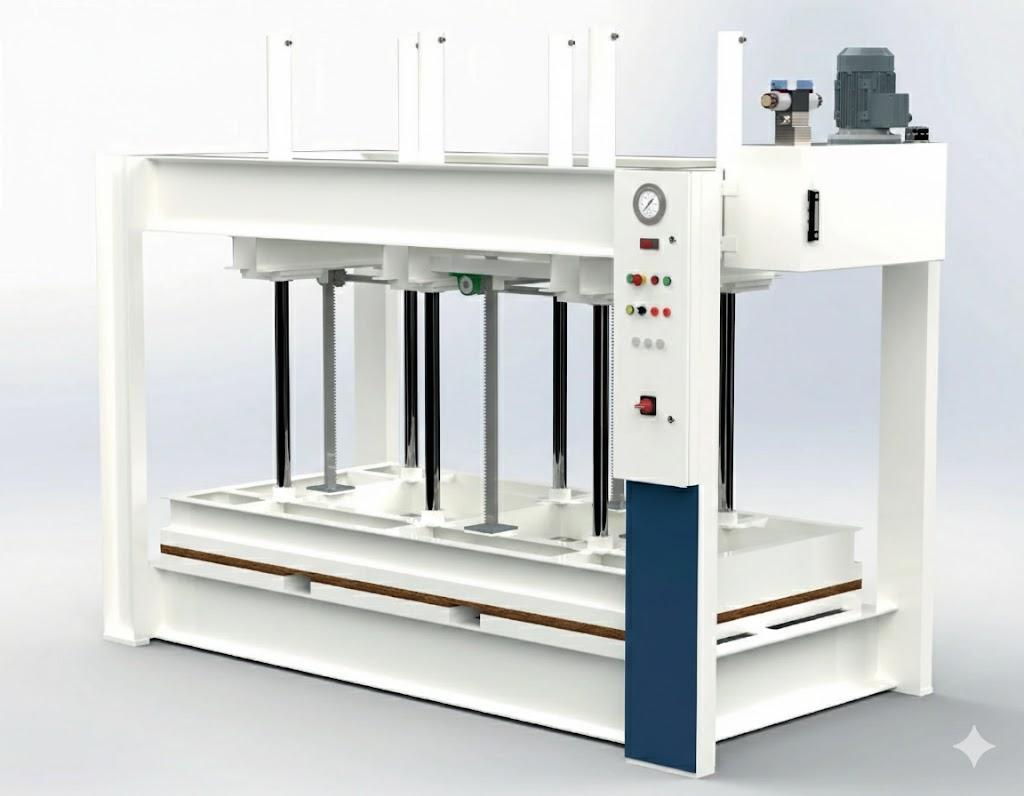

Width: 1300 mm Length: 2500 mm Number of Cylinders: 6 units Pressing power: 50 tons Opening size: 800 mm Plate Type: MDF Roller Conveyor System: The blue rollers located at the bottom allow heavy parts (e.g., a panel or block) to easily enter the machine and be transferred to the exit after the process is completed. Hydraulic/Pneumatic Pistons: Bright metal shafts extending from top to bottom in the middle of the machine perform the pressing operation by pushing the upper platen down. Frame Structure: It has a robust frame made of white painted, heavy steel construction. This prevents the machine from flexing under high pressure. Electric Motor: The motor located in the upper right corner is the power source that feeds the system's hydraulic pump or mechanical movement mechanism. Control Panel Area: The column on the right side (where we erased the text) is typically the area where the control interface, used by the operator to manage the machine, is located. Machines of this type are generally used in applications requiring precise pressing and flatness, such as EPS block pressing, mattress assembly, or gluing furniture panels.
$null
Cold press
