Transverse slotting machines for plain and corrugated PVC, PE, etc. pipes (for filtering water from wells and drainage or consolidating the soil) It is possible to open 1 or more parallel slots; variable dimensions can be made if needed. A wide variety of diamond blade or special steel blade types can be used. This machine, which we developed for making holes and slots in drainage pipes, can make both holes and slots at desired angles and intervals. Our machine is designed for corrugated and plain pipes. Our machine, which can open slots and holes for pipe diameters from 200mm to 500mm, can adjust hole or slot intervals with 1mm precision thanks to its encoder.
$null
Automatic threading machines that can work in-line or off-line, suitable for PVC electrical, gas, and water pipes (can be used for single and double extrusion) External and internal threading (with chamfering) occurs on both sides simultaneously. Independent spindle motors are used for both threading units. Thread lengths are adjustable. Thread depths are adjustable. Clamping of pipes during the threading process is provided by the iris mechanism jaw system. High efficiency and thread precision. Settings can be made from the touch screen for all pipe diameters. Easy operation, effective working, minimum maintenance. Optional servo system. Pipe preparation and storage stands. Clean working area thanks to dust-sealed structure
$null

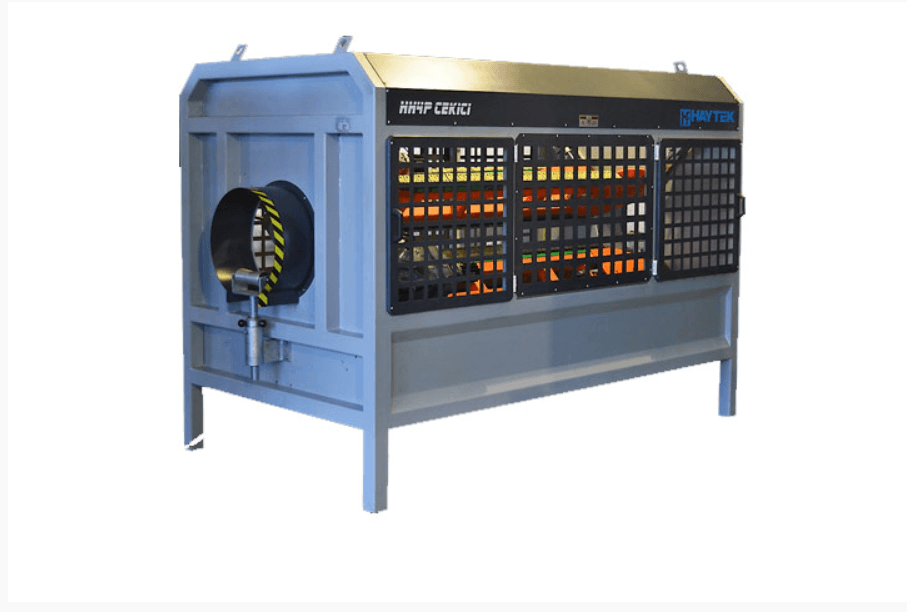

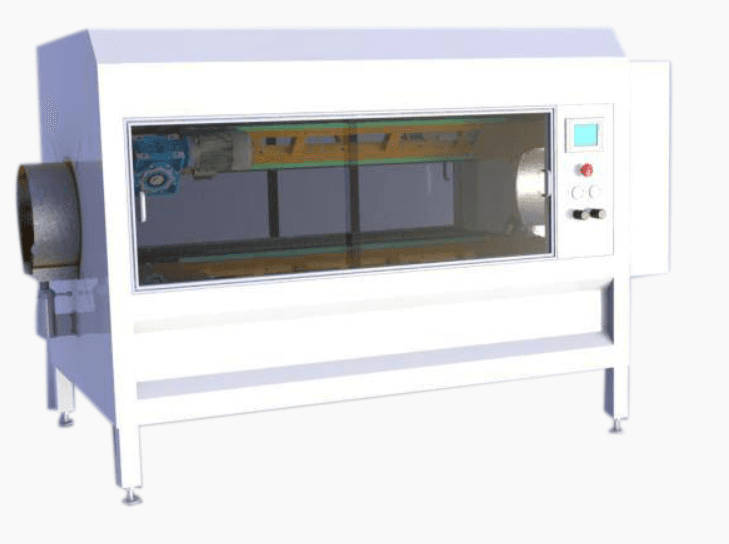

Independent movement for each pallet with A.C. motor optional Servo Motor and vector drives (wear-prone transmission elements eliminated – minimum maintenance and high reliability) All pallets are pulling and the rubber blocks on them are shaped to provide the widest contact surface with the pipe. Upper pulling pallets can be adjusted at an angle. Maximum pulling force is achieved with minimum pallet pressure, even at minimum pressure on the pallets, thanks to the high contact available on the pallets. High torque can be obtained at low line speeds in servo system pullers.
$null
Independent movement for each pallet with A.C. motor, optional Servo Motor and vector drives (wear-prone transmission elements eliminated – minimum maintenance and high reliability) All pallets are driven and the rubber blocks on them are shaped to provide the widest contact surface with the pipe. Upper haul-off pallets can be adjusted at an angle. Maximum pulling force is achieved with minimum pallet pressure, even at minimum pallet pressure, thanks to the high contact available on the pallets. High torque can be obtained at low line speeds in servo system haul-offs.
$null
Independent movement for each pallet with A.C. motor and vector drives (wear-prone transmission elements have been eliminated – minimum maintenance and high reliability) All pallets are in pulling mode and the rubber blocks on them are shaped to provide the widest contact surface with the pipe. Upper puller pallets can be adjusted at an angle. Even with minimum pressure on the pallets, maximum pulling force is achieved with minimum pallet pressure due to the high contact available on the pallets.
$null
Independent movement for each pallet with A.C. motor and vector drives (wear-prone transmission elements eliminated – minimum maintenance and high reliability) All pallets are in pulling mode and the rubber blocks on them are shaped to provide the widest contact surface with the pipe. Upper pulling pallets can be adjusted at an angle. Even with minimum pressure on the pallets, maximum pulling force is achieved with minimum pallet pressure due to the high contact available on the pallets.
$null

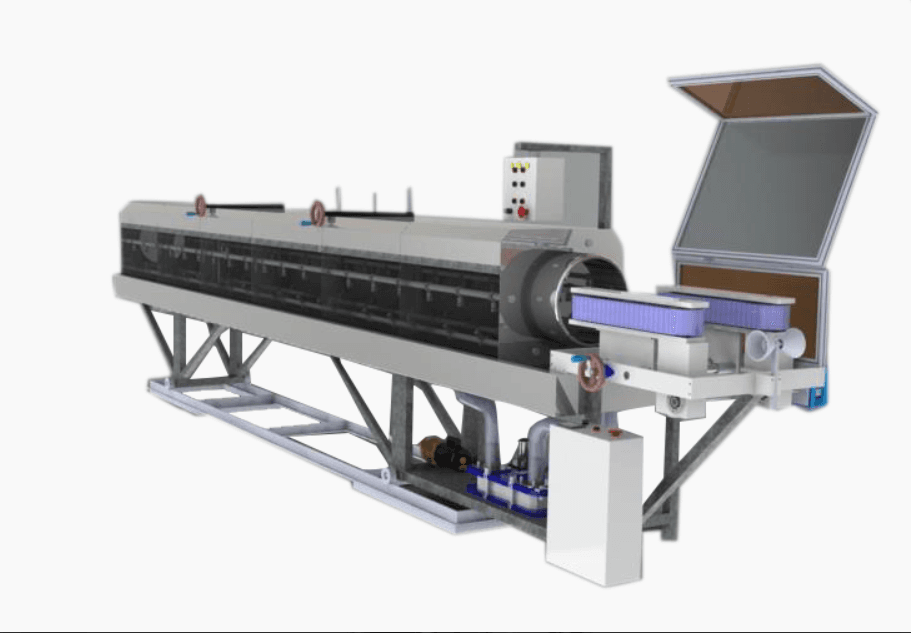

It is an industrial equipment used for rapid and controlled cooling of corrugated PVC pipes after extrusion and shaping in the production process. It ensures dimensional stability by preserving the pipe's form, diameter, and strength. The cooling tank ensures homogeneous cooling of the pipe through water circulation and reduces the risk of deformation. It plays a critical role in maintaining standard product quality, especially in high-speed production lines. It can be designed to be compatible with corrugated PVC pipes of different diameters and lengths. Areas of Use Corrugated PVC pipe production lines Infrastructure and drainage pipes Sewerage and cable protection systems Key Features Homogeneous and balanced cooling Preservation of pipe form and dimensions Durable body and long-lasting structure Design suitable for continuous and mass production Adaptable structure for different pipe diameters In summary: The corrugated cooling tank is one of the essential equipment that stabilizes quality and enables defect-free production in PVC pipe manufacturing.
$null
Our vacuum tanks are manufactured from 304 grade stainless steel and painted. Our vacuum tanks are produced by calculating their lengths and cooling needs in accordance with the extruder capacity. Our vacuum tanks are manufactured to produce high-capacity pipes and to obtain quality products. All control functions of our vacuum tanks can be easily performed via the control panel. Custom manufacturing can be done according to the cooling capacity and pipe diameter required by our customer.
$null

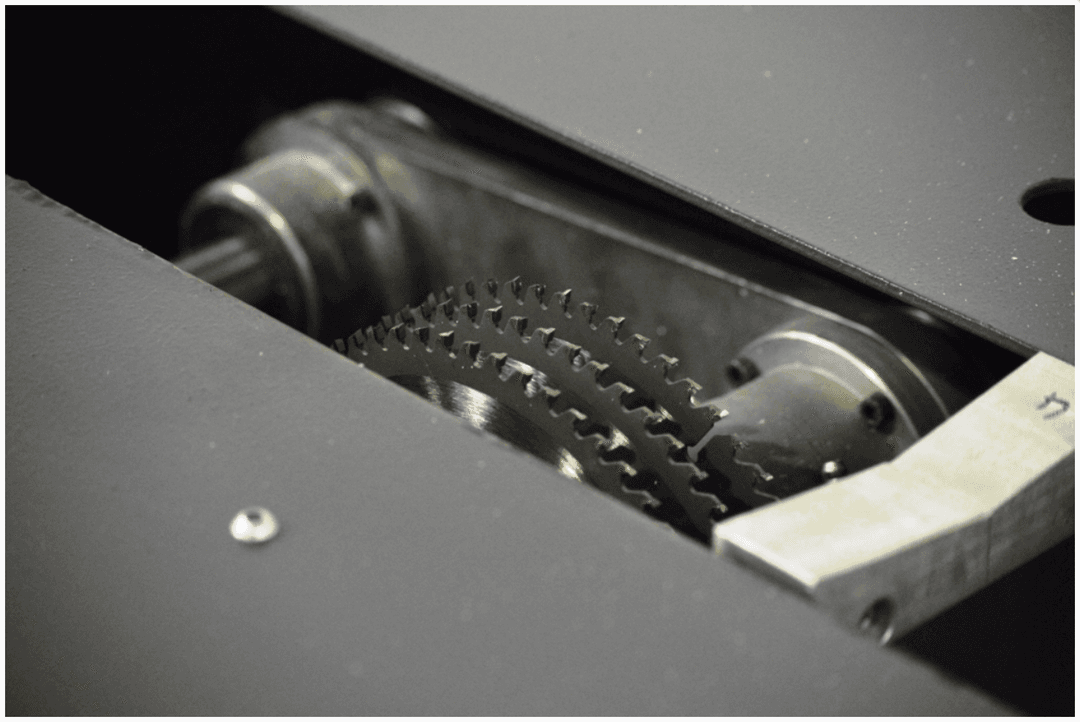

PVC Drilling Pipe Vertical Slotting Machine – Description This is an industrial-grade machine designed for creating vertical slots (filters) in PVC drilling pipes. It opens uniform, evenly spaced, and standard-compliant filter channels to enhance the filtration capacity of PVC pipes used in groundwater, well, and drainage systems. The machine precisely cuts by positioning the pipe stably and balanced. The opened filters ensure free water passage while minimizing the entry of sand and unwanted particles into the pipe. It is suitable for mass production and offers both time savings and consistent workmanship quality compared to manual methods. Areas of Use Drinking water and irrigation wells Groundwater drilling systems Drainage and filtration projects Agricultural and infrastructure applications Key Features Suitable structure for PVC drilling pipes Vertical and regular slotting Adjustable slot spacing and depth Durable body, long-lasting use Mass and repeatable production capability In short: This machine is a clear solution for those who want to perform slotting on drilling pipes properly, quickly, and in a standardized manner.
$null
Pvc extrusion line
