The open frame fiber laser metal cutting machine is an advanced laser cutting technology that enables high-precision, fast, and efficient cutting of metal materials. These machines are widely used in the metal processing industry today, offering an ideal solution especially for complex and precise cutting operations. The "open frame" design signifies that the machine's working area has an open structure. This design provides operators with easier access, simplifying material loading, unloading, and machine maintenance processes. Furthermore, thanks to the large working area, large-sized metal sheets and plate materials can be processed comfortably. These features offer a significant advantage in terms of both practicality and accelerating the production process. Features of the Open Frame Fiber Laser Metal Cutting Machine 1. Precision and Quality Fine details and smooth edges are achieved thanks to the high-intensity laser beam. Offers superior cutting quality with minimal burrs and deformation. 2. Speed and Efficiency Much faster than traditional cutting methods. High cutting speed increases efficiency in large-scale production. 3. Ability to Process Various Metal Types Can work on various metals such as stainless steel, carbon steel, aluminum, brass, and copper. Customizable laser power options are available for different thicknesses. 4. Low Energy Consumption Fiber laser technology consumes less energy than CO₂ lasers. Offers an environmentally friendly and economical cutting solution. 5. Open Frame Design Provides easy access for the operator to the cutting area. Material loading and unloading operations are fast. Allows processing of large-sized sheets. 6. Durability and Long Life Low maintenance costs due to the long lifespan of the fiber laser source. Machines made with high-quality materials are durable. 7. Automation and Ease of Use Easily programmable with CNC control system. Supports CAD/CAM software, allowing complex designs to be processed easily. 8. Safety Features Requires careful use due to the open frame design. Eye protection and laser safety precautions must be ensured.
$null

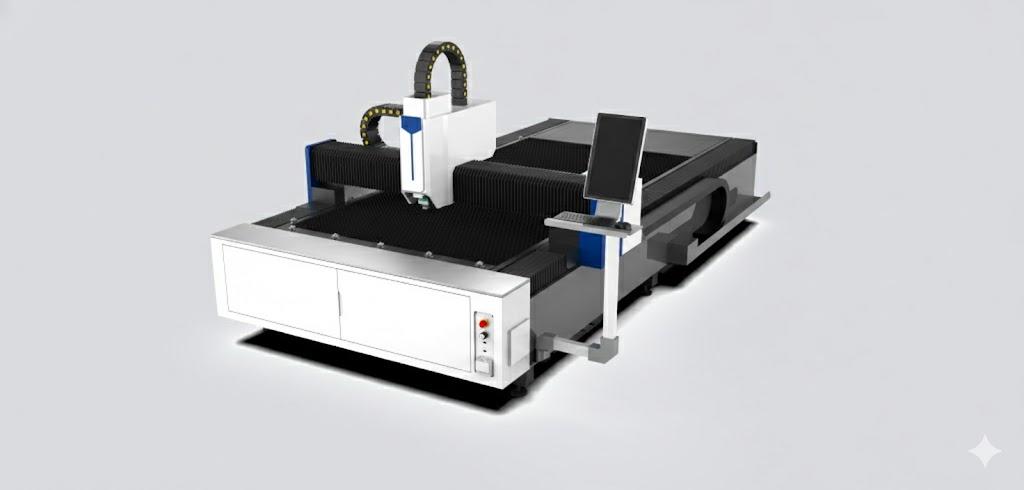

Here are the main parts and functions of the machine: Cutting Head (on Gantry): This part focuses the laser beam and reflects it onto the material. It moves rapidly along the X and Y axes thanks to a movable gantry system. Control Panel and Monitor: The screen located on the right side is used to manage the machine's software and load cutting designs (CAD/CAM files). Cutting Table (Bed): This is the wide, serrated surface where the material is placed. This structure typically has a slatted design to prevent the laser from damaging the table and to facilitate smoke extraction. Cable Carrier Chains (Caterpillar): These are flexible channels with black rings that protect the electrical and gas lines going to the machine's moving parts. Key Features: Precision: Capable of smooth cuts even at details below the millimeter. Speed: Offers much higher production capacity compared to traditional cutting methods. Low Maintenance: Thanks to fiber technology, mechanical wear is minimal, and operating costs are low. Provides data transmission via EtherCAT bus, offering high speed and stability. This system is easy to operate, rich in functionality, and even inexperienced beginners can cut high-quality products.
