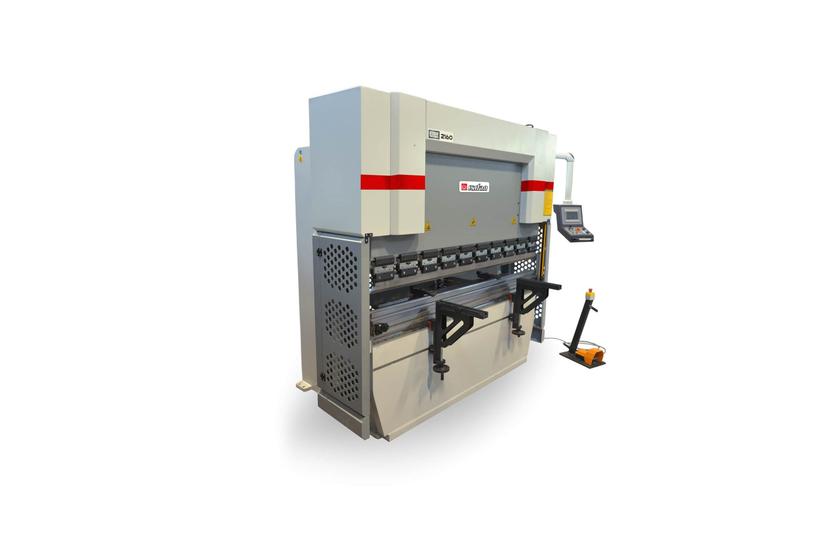

FEATURES AND STANDARD EQUIPMENT Bending system with double piston upper jaw Ensured static and dynamic rigidity thanks to steel body and upper jaw material, Easily adjustable upper jaw movement supported by fiber slide bearings, High-strength balancing shaft and eccentric ball system to aid parallelism, Motor-controlled angle adjustment mechanism with mechanical stroke system inside the piston, High stroke and daylight for easy use of different bending dies, Easy tonnage adjustment and stopping at the lower stroke point from the NC control unit with pressure valves, Hydraulic safety system against excessive pressure increase, Dual-speed working system; free fall, slow bending, rapid return, Complies with CE thanks to multi-functional foot pedal with NC control and emergency stop, Compact, low-maintenance HAWE or REXROTH hydraulic system unit on the upper side of the machine, Remote-connected service solution thanks to European-made SIEMENS and PIZZATO, BALLUF electrical equipment, Bending in different forms with LEUZE brand safety system and learning mode, The standard NC control unit allows for 500 programs and up to 200 lines per program. Easy program loading-unloading via USB. Standard upper and lower dies, Motorized X-axis backgauge with linear slide and NC control, programmable for 600 mm travel and 0.2 mm working accuracy, Y-axis angle adjustment with motor and NC control, Manual crowning for quick die change using PROMECAM, Easily movable control panel, Front support arms that can be easily moved with linear slide and bearing system, Clamping and fixing bolts for centering the lower die, Programmable precise retraction in the backgauge. OPTIONAL EQUIPMENT Special bending dies Dual hand and foot controlled special pedal system. Special safety systems. (DSP, FIESSLER) Additional length in the backgauge. Extra backgauge duck. Extra front support arm. Motorized R-axis with precise movement Manual or Motorized Crowning on Lower Blade
