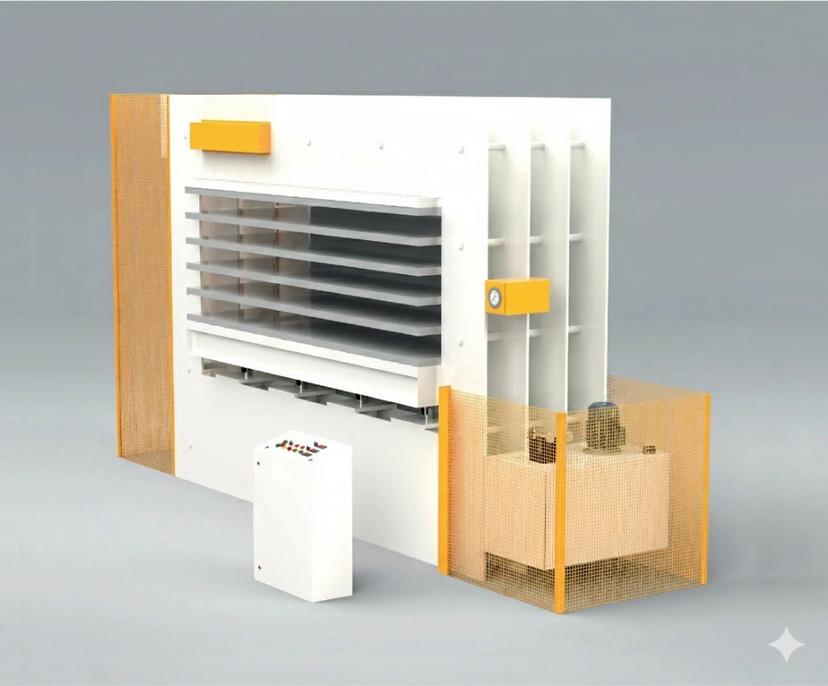

Width: Request a quote Length: Request a quote Number of Cylinders: Request a quote Pressing Power: Request a quote Opening Size: Request a quote Plate Type: Request a quote 1. Application Area and Purpose This machine is designed to press multiple panels simultaneously under high pressure and temperature. Its primary functions include: Veneer Gluing: Gluing natural wood veneer onto particleboard or MDF. Lamination: Applying high-pressure laminate (HPL) or paper impregnation onto panels. Plywood Production: Gluing together layers of wood panels. 2. Structural Features Multi-Daylight Structure: As seen in the visual, there are 6-8 stacked platens. This allows for the pressing of numerous parts at once, increasing production speed. Hydraulic System: Cylinders at the bottom push the platens upwards, applying immense pressure in tons. Heating Plates: Each layer contains steel platens through which hot water, oil, or steam circulates. This heat ensures rapid glue curing. 3. Design Details Control Cabinet: The white box located at the front of the machine is the main control center where temperature and pressure settings are adjusted. Safety Cages: The orange-netted structures on the sides are safety barriers designed to protect the operator from moving parts. Robust Frame: The machine is constructed with thick steel columns to withstand the immense pressure applied. This machine is an industrial giant that offers significant savings in labor and time for workshops engaged in mass production.
