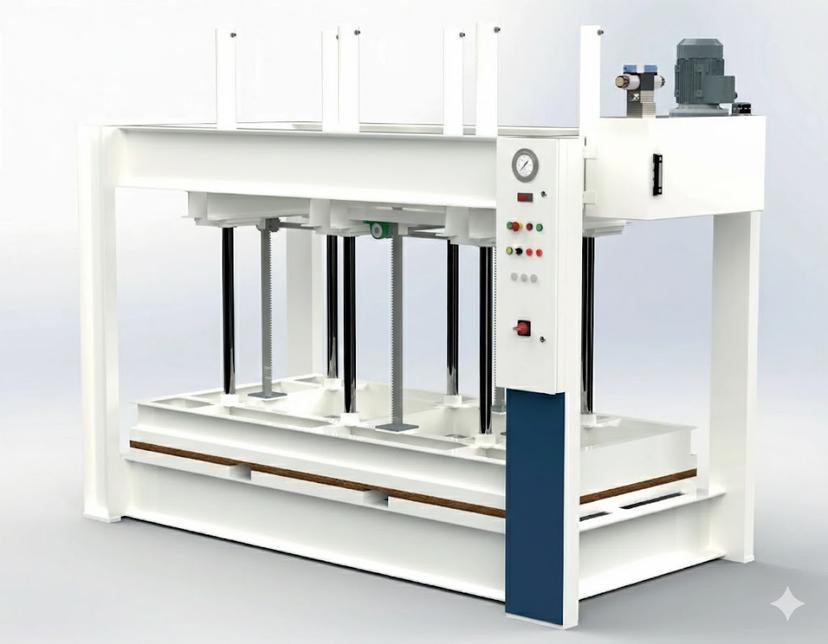

Width: 1300 mm Length: 2500 mm Number of Cylinders: 6 units Pressing Power: 50 tons Opening Size: 400 mm Plate Type: MDF Frame (Chassis): Features a robust, white-painted steel construction to withstand heavy loads and pressure. Hydraulic Cylinders: Located at the bottom of the machine, there are 6 powerful hydraulic pistons (chrome-plated shafts) that apply pressure by pushing the upper platen upwards. Control Panel: The panel, located on the side, allows for machine operation with a pressure gauge (manometer), emergency stop button, and operational buttons. Motor and Hydraulic Unit: The electric motor, positioned on the right side, provides the necessary power to the hydraulic system. Rack and Pinion System: Vertical gear racks on both sides of the platen ensure the platen moves completely parallel during pressing and presses evenly. Purpose of Use These types of machines are generally used for the following processes: Lamination: Gluing veneer, laminate, or MDF onto wood panels. Panel Joining: Pressing multiple layers together under high pressure. Forming: Shaping material using specific molds. Technical Details The design shown, with its open structure, allows the operator to easily load and unload material from both sides. It is often preferred in door production, furniture panels, and flooring production lines.
