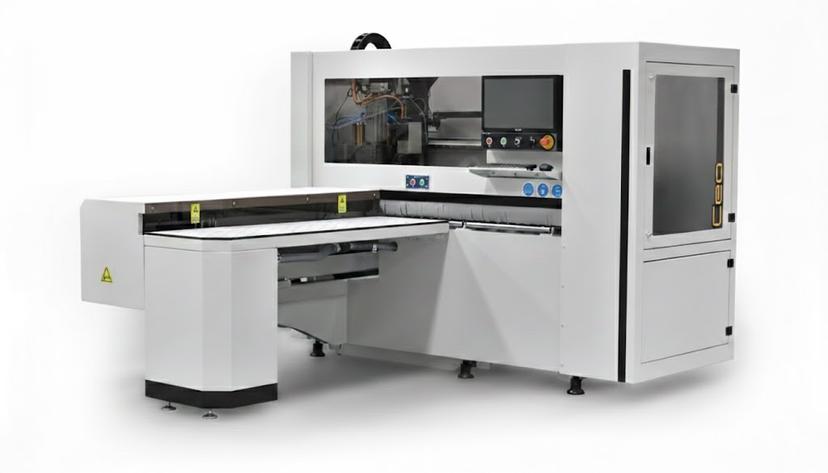

General Description and FeaturesFunction: Used for high-precision drilling, grooving, and surface processing operations in panel furniture production.Control Unit: Equipped with Italian TPA software. This user-friendly software allows for easy design and programming through CAD/CAM modules.Part Positioning: The workpiece is positioned very quickly and precisely thanks to servo motor-controlled grippers.Multi-Drilling Unit: It has a structure capable of drilling on 5 different surfaces, both top and side, and also has the capability for fast grooving with a saw unit.Air Table: Features an air table system that allows workpieces to be processed by sliding them easily without scratching the machine.Spindle Motor: Has a powerful spindle motor for corner cutting and milling operations in addition to drilling.Technical Details (For CEO Plus Model)FeatureValue (Approximate)Length4750 mmWidth2350 mmHeight2100 mmWeight~2900 kg Feature,Description / Standard Values Machine Type,CNC Drilling and Milling Machine (PTP / Through-feed) Panel Width,Min: 50 mm / Max: 1000 - 1200 mm Panel Length,Min: 200 mm / Max: Unlimited (Conveyor system) Panel Thickness,8 mm - 60 mm X/Y/Z Axis Speed,60 - 80 m/min (Fast positioning) Drilling Unit,Vertical and Horizontal drilling spindles (L configuration) Milling Motor,3.5 kW - 5.5 kW (Optional ISO30/ER32 collet) Control System,Industrial PC and Windows-based interface Air Pressure,6 - 8 Bar Weight,Approximately 1500 - 2500 kg
