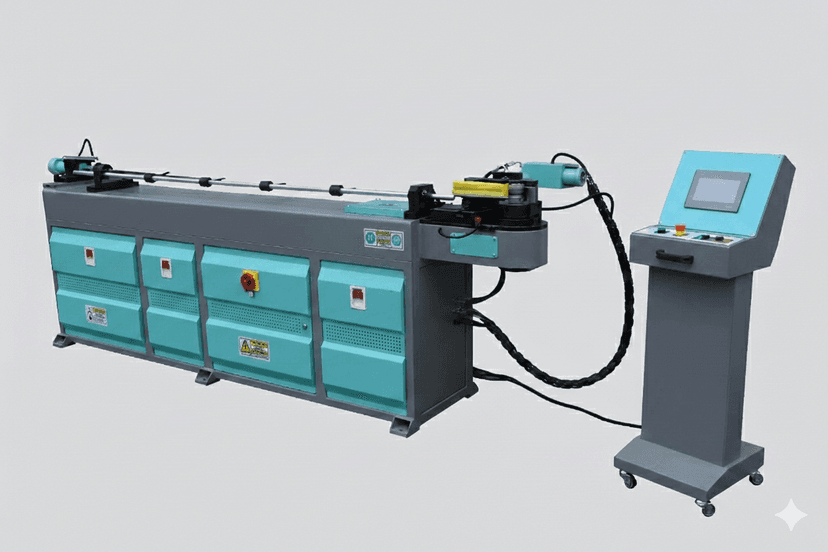

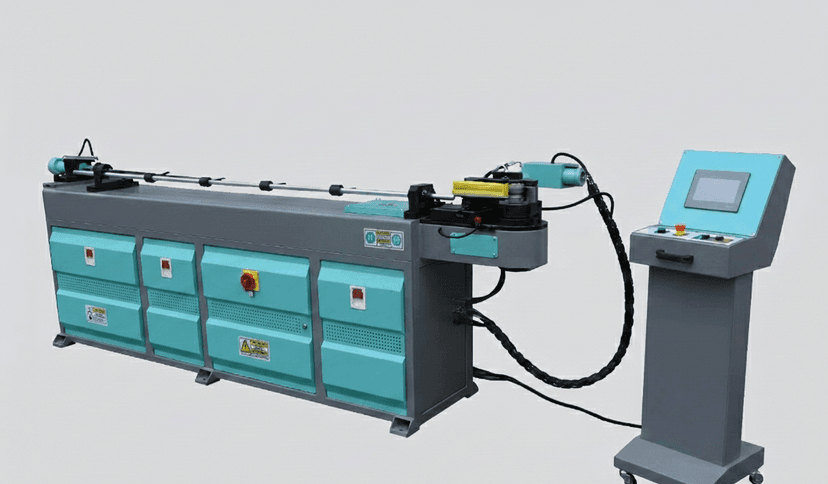

General DescriptionA fully equipped industrial machine designed for high-precision, smooth, and burr-free bending of tubes, profiles, and solid bars.Purpose of UseSerial bending of tubes used in ventilation, furniture frames, defense industry, and complex piping systems.Estimated WEIGHTApproximately 1,500 kg - 2,200 kg, considering its design and long body structure.Technical AdvantagesMandrel Bending System: Provides support to the inner part of the tube, completely preventing crushing, shrinking, or breaking during bending.Advanced Touch Panel: Control interface that can memorize complex bending sequences and minimize operator errors.Robust Chassis Structure: Closed steel body design that minimizes vibration, ensures long life, and provides high stability.Ergonomic Control: Safe operation with a foot pedal featuring a remote cable connection and emergency stop. Feature,Detail / Value Control System,CNC (Supported by Touch Panel) Maximum Tube Diameter,Ø38 mm - Ø51 mm (Varies by model) Maximum Wall Thickness,2.0 mm - 3.0 mm (Steel/Stainless) Bending Angle Accuracy,± 0.1° Maximum Bending Angle,190° Tube Feeding Length,2500 mm - 3000 mm Drive System,Hydraulic or Servo Motor Operating Modes,Fully Automatic / Semi-Automatic / Manual Power Supply,380V / 50Hz
