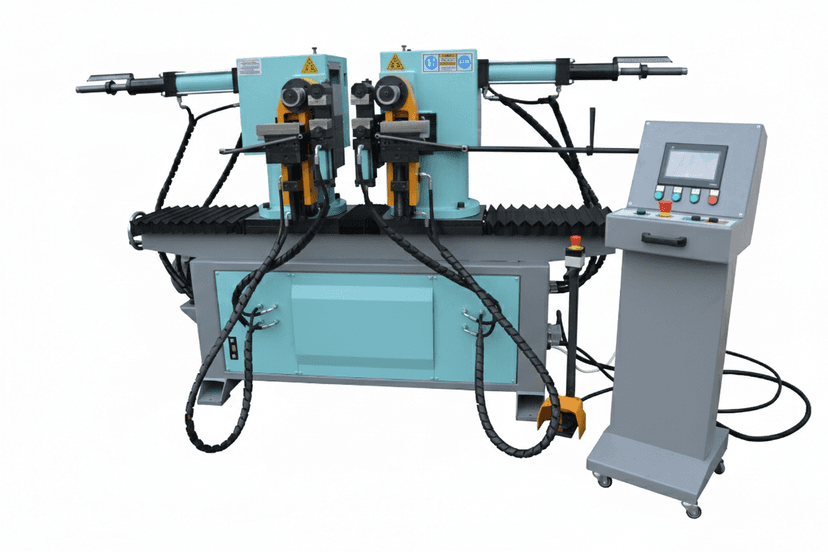

Key Components and Differentiating Features Double Bending Head: The machine features two independent bending heads, one on the right and one on the left. The distance between these heads can be adjusted via a rail system (the bellows-like section in the center of the machine). This allows for bending both ends of a long pipe simultaneously and symmetrically. PLC and Touch Control Panel: A screen is located on the vertical panel on the right side. This indicates that the machine has numerical control (NC/CNC) capability. The operator can program the bending angle and speed with millimeter precision on the screen, ensuring that each part is identical (standard) to the others. Hydraulic and Pneumatic Systems: The thick black hoses at the bottom of the machine carry high-pressure hydraulic oil to the bending heads. This allows the machine to shape even very hard profiles effortlessly. Foot Pedal and Safety: The orange foot pedal used by the operator to initiate the process and the emergency stop buttons on the panel ensure a safe working environment. How it Works? Programming: The bending angle and distance are entered via the touchscreen. Feeding: The pipe or profile is placed between both heads. Simultaneous Bending: Hydraulic clamping feet secure the material, and both heads rotate simultaneously to shape the pipe. Applications and Advantages This machine is indispensable, especially for high-volume jobs requiring symmetry: Furniture Industry: Chair backs, table frames, and metal bed headboards. Automotive: Exhaust pipes, chassis supports, and protection bars. Sports Equipment: Curved frames for fitness machines. Heating/Cooling: Towel warmers and large-diameter pipe installations. Summary: Compared to single-head models, this machine doubles production speed while minimizing error margins, offering a professional industrial solution. Feature,Description / Value (General) Processing Type,Double Head Hydraulic Forming Maximum Pipe Diameter,∅ 38 mm - 50 mm (Varies by model) Maximum Wall Thickness,"2.0 mm (Steel), 1.5 mm (Stainless)" Maximum Working Length,80 mm - 100 mm Working Pressure,12 - 14 MPa Motor Power,4 kW - 5.5 kW Control System,NC (Numerical Control) or PLC Touch Screen Processing Speed,3 - 5 seconds / piece Oil Tank Capacity,100 - 120 Liters Machine Weight,Approx. 850 - 1200 kg
