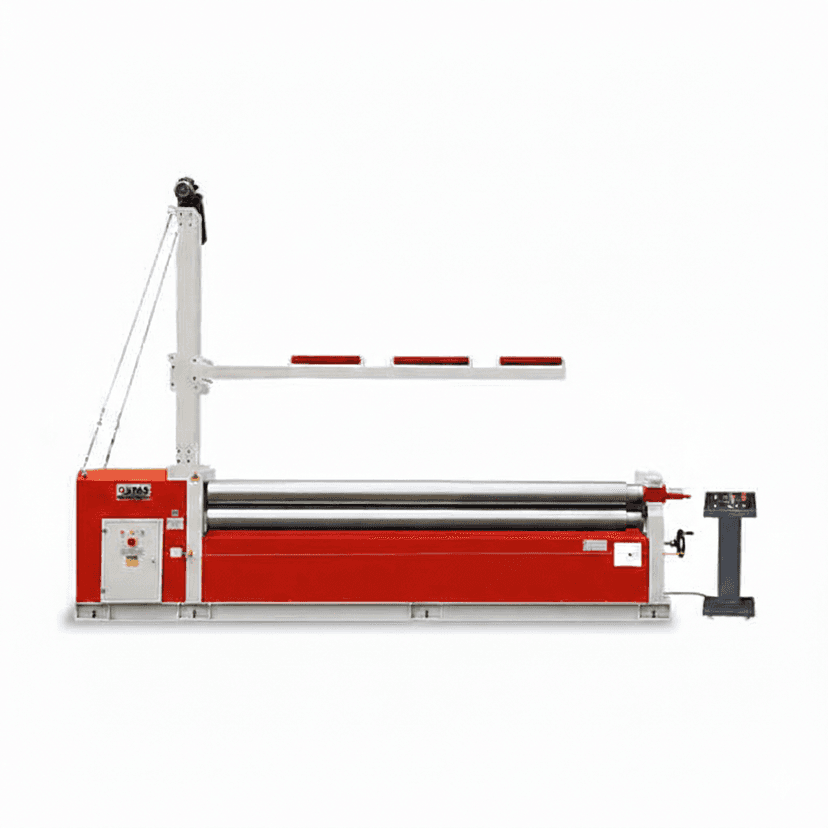

Asymmetric 3-Roll Plate Bending Machine Technical Specifications High-performance shafts made of SAE 1050 (CK-45) certified steel Lower and upper shafts driven by a helical gear reducer with chain and belt drive and a gear mechanism ST-52 Steel construction body Motorized rear roll Precise bending capability with a braked motor Compliant with CE standards Product Features and Equipment 3-Roll Mechanical System: While the two lower rolls are fixed or manually adjustable, the upper roll moves to determine the bending radius of the material. It is generally ideal for bending thin and medium-thick sheets. Upper Support (Crane/Crane Arm) System: The vertical column and horizontal arm on the machine prevent the sheet from sagging and deforming due to its own weight during large-diameter bends. This support allows for the production of wider diameter cylinders with much greater precision. Separate Control Panel: Features a control panel with digital indicators that allows the operator to manage roll movements from a point independent of the machine. Manual Side Guide: Equipped with manual adjustment levers on the side for precise conical bends or sheet alignment. Technical Advantages Large Diameter Production: Thanks to the upper support unit, it facilitates large-diameter sheet processing operations that are normally difficult to support. Stability: The body structure is made of a rigid steel construction designed to minimize flexing during bending. Ease of Maintenance: As it is a mechanically weighted system, maintenance processes are simpler compared to hydraulic systems. Applications Large Diameter Pipe Manufacturing: Especially for ventilation ducts and chimney systems. Water Tanks and Silos: Body bending for large volume storage tanks. Advertising and Architecture: Large curved metal signs and decorative architectural structures.
