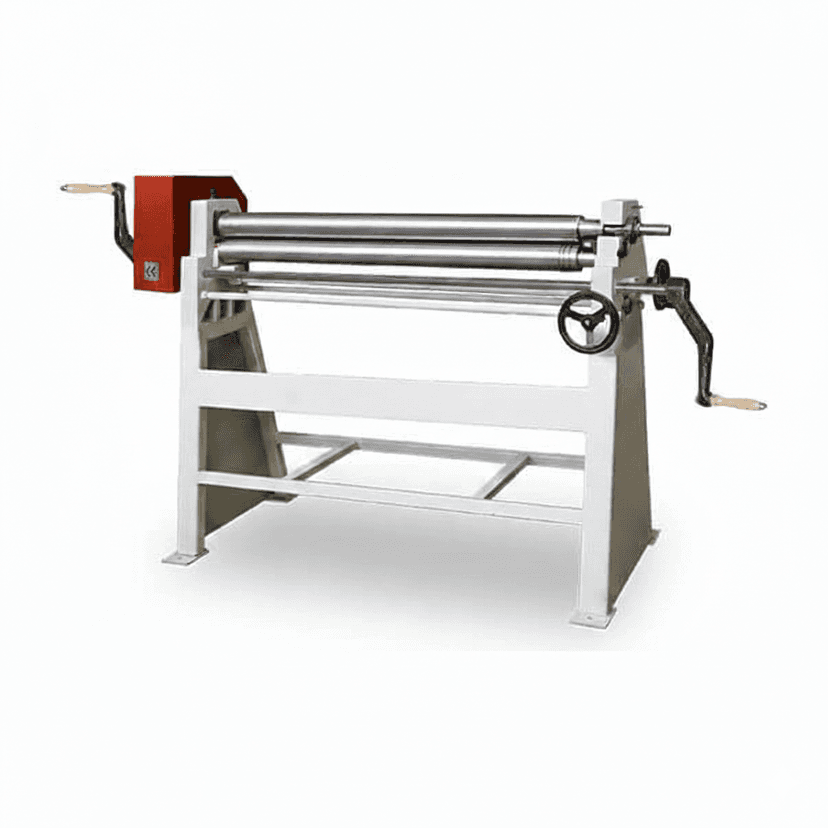

Small Asymmetric 3-Roll Plate Bending Machine Technical Specifications Cast iron main body Lower and upper rolls are driven by chain and gear system from the gearbox (SBM) High-equipped shafts made of SAE 1050 (CK-45) Certified steel Up and down movement of the lower and rear shafts from a single center Product Features and Equipment Asymmetric Roll Arrangement: The asymmetric placement of the rolls offers pre-bending capability, allowing the ends of the sheet metal to be bent with a much shorter flat (minimum scrap). Motorized and Geared Drive: The main rolls are driven by a powerful motor and gearbox system. This allows the operator to bend at a continuous and stable speed without manual effort. Cast Iron Main Body: The side legs and body of the machine are made of cast iron. This heavy and rigid structure prevents flexing even under high pressure, resulting in precise bending results. Foot Pedal Control Panel: The foot pedal, which stands independently of the machine, helps the operator to safely hold and guide the sheet metal with both hands. It has an emergency stop button. Conical Bending Feature: Cones or conical parts can be manufactured thanks to the adjustable structure of the rolls. Wired Safety System: The safety wire extending along the machine allows the operator to quickly stop the system in case of any danger. Technical Details (SBM 1270 x 90) Bending Length: 1270 mm Roll Diameter: 90 mm Bending Capacity: Generally suitable for sheet metal thicknesses of 2.5 mm - 3.0 mm. Areas of Use Manufacturing of industrial kitchen equipment. Heating, ventilation, and air conditioning (HVAC) systems. Stainless steel tank and vessel production. Automotive and marine auxiliary industry parts.
