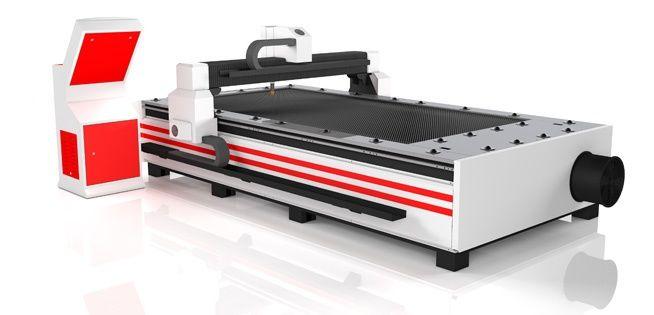

Machine Features The entire mechanical transmission system adopts precision roller bearings and precision gears and racks with a national standard 7-grade processing accuracy. The drive system adopts a domestic high-split motor. At the same time, an automatic backlash compensation device is added to the horizontal and longitudinal gear transmission structure, so that the transmission structure can accurately execute the instructions given by the CNC system. Active End Beam The longitudinal rail adopts a linear sliding rail to ensure smooth running on two rails. All equipment parts are processed by blackening and electroplating. Features,Technical Details Laser Source,Fiber Laser (Raycus / IPG Optional) Laser Power,1000W - 3000W (Configurable according to needs) Working Area,1500 x 3000 mm X/Y Axis Accuracy,±0.03 mm Repeatability Accuracy,±0.02 mm Maximum Speed,80 - 100 m/min Cooling System,Industrial Water-Cooled Chiller Control System,CNC Control Panel (CypCut / FSCUT) Drive System,High Precision Servo Motors Supported Formats,"AI, DXF, PLT, Gerber, etc." Working Voltage,380V / 50Hz / 60Hz
