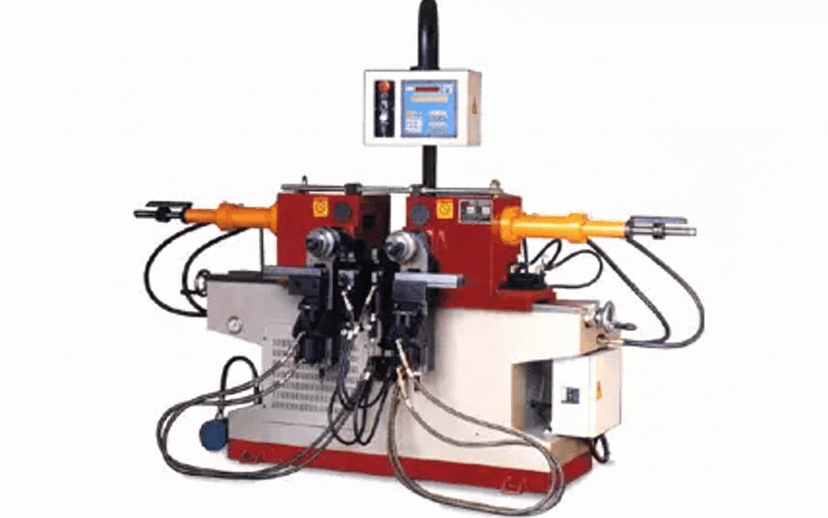

General Description This machine enables the bending of metal tubes (steel, stainless steel, aluminum, copper, etc.) used in sectors such as automotive, furniture, aviation, and home appliances into desired angles and forms with computer control. Key Features: Precision Bending Technology: Thanks to the computerized control (CNC) system, it performs bending, feeding, and rotating operations with millimeter precision. Multi-Axis Movement: It not only bends the tube but also rotates it around its own axis, enabling the production of complex 3D shapes in a single operation. High Efficiency: Designed for mass production lines; offers fast tool changes and short processing times. Robust Body Structure: Features a cast or welded steel body that is resistant to heavy industrial conditions, minimizes vibration, and ensures long-term use. Important Note: The long rail system at the rear of the machine is the servo drive unit that enables automatic feeding of tubes. This minimizes operator intervention, thereby increasing work safety and production quality. Features, Technical Specifications (Standard Model) Clamping Force (Capacity),10 - 15 Ton Processing Diameter Range (Ø),5 mm - 60 mm Maximum Lead (Thread Pitch),2.5 mm - 4.0 mm Threading Length (Internal Feed),70 mm - 150 mm Threading Length (Through),Unlimited (via feed path) Die (Mold) Spindle Diameter,∅54 mm or ∅69.85 mm Maximum Die Outer Diameter,∅130 mm - ∅170 mm Spindle Speed,5 - 100 rpm (Stepless/Inverter Controlled) Main Motor Power,5.5 kW (7.5 HP) Hydraulic Motor Power,2.2 kW (3.0 HP) Cooling Pump Power,0.1 kW Machine Weight (Approximate),1200 kg - 1500 kg Dimensions (Width x Length x Height),1400×1300×1500 mm
